Metalux 22FP2135C 20.7W 2'x2' LED Edge Lit Panel, 2205 Lumens, 80 CRI, 3500K, 120-277V
Metalux 22FP2135C 20.7W 2'x2' LED Edge Lit Panel, 2205 Lumens, 80 CRI, 3500K, 120-277V
Regular price
Price:
$103.13
Regular price
Price:
Sale price
$103.13
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Mounting
Warranty
Five year warranty.
Controls
Electrical
Optical Shielding
Regress Frame
Compliance
Emergency Options
Construction
- Narrow aluminum bezel is tightly held to code gauge steel back plate
- Seamless corners to maximize the light emitting surface with a refined finish

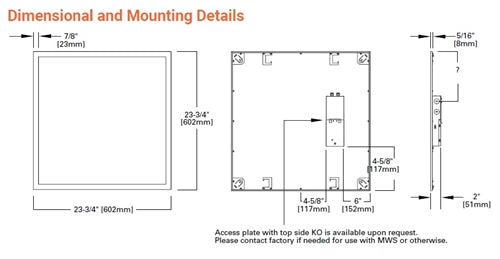

Mounting
- Integral grid locking clips and separate suspension clips provided for installation flexibility when additional retention is required
- Junction box constructed of code gauge galvanized steel with and easy access hinged door
- Multiple Trade size KO provided and JBox is suitable for up to 12AWG wiring • Stock luminaire is less than 2" for use in shallow plenum or low ceiling spaces
- Surface mounting available with surface mount kits
- Suspension mounting only with use of both surface mounting kits and suspension mounting kits
- Factory installed flexible cable with dimming leads options available
Warranty
Five year warranty.
Controls
- Standard UNV 120 - 277V driver with 0-10V dimming to 10% standard
- Compatible with field installed wireless controls available for Wavelinx
Electrical
- Standard and High Efficacy models available
- LED’s available in 3000K, 3500K, 4000K, and 5000K with a minimum of 80 CRI
- 90 CRI available with 3000K
- Projected lumen maintenance based on TM21 testing standards is L73 > 60,000 hours
Optical Shielding
- Light guide with specialized features to optimize light extraction
- White frost lens with smooth pattern for uniform illumination • Scratch and impact resistant
Regress Frame
- Factory installed option available for ship complete, single unit to speed install. See fixture ordering logic
- Fits CGTS, CGT, FPS, and FP. Consult factory for additional luminaire choices
- Extruded aluminum frame with miter corners at 2" nominal height
- Regress kit does not alter design or construction of luminaire
- Accessory kit also available
Compliance
- Indoor luminaires are cULus listed for 25C ambient environments
- IC rated for direct insulation contact
- RoHS compliant
- Damp location listed
- IESNA LM-79 and LM-80 standards compliant
- DesignLights Consortium Qualified and classified for DLC Standard, refer to www.designlights.org for details.
- Can be used for State of California Title 24 high efficacy luminaire
- Meets IP5X rating from the room side with no modification needed
- ATW-SW4 option is available for CCEA (Chicago Plenum) compliance
- Fixture is rated for NSF/ANSI standard 2 - Light fixture for Splash Zone and Non-Food Zone
Emergency Options
- 120V-277V integral emergency battery pack comes in 7-watts, 10-watt, or 14-watts
- Constant power to the LED system for controlled, predictable discharge
- Integrated test switch/indicator light visible from floor
- Min. 90-minute backup period for code compliance
- Test switch is remote mounted and should be visible from the floor
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
