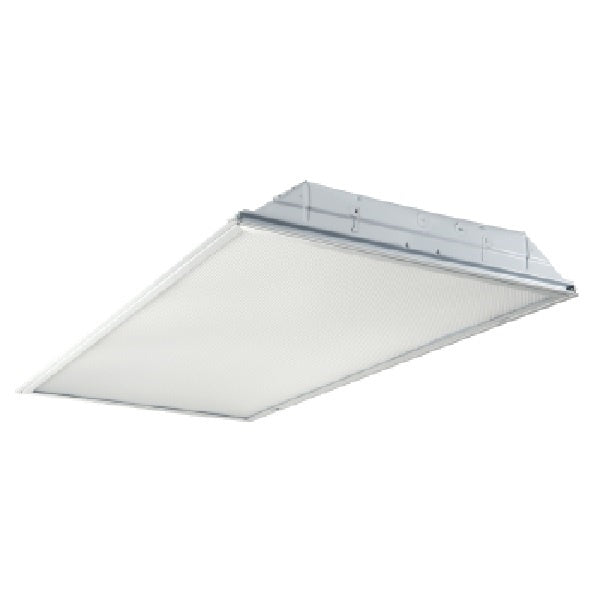

Metalux 22GR-LD5-60-F1-UNV-L840-CD1-U 2'x2' LED Recessed Troffer, 6000 Lumens, 4000K, 0-10V Driver

Metalux 22GR-LD5-60-F1-UNV-L840-CD1-U 2'x2' LED Recessed Troffer, 6000 Lumens, 4000K, 0-10V Driver

Price: $214.20
Price: $214.20

MODEL: Metalux-22GR-525

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Construction
  • Rigid housing is die formed of code gauge prime cold rolled steel
  • Full length die-formed stiffeners and unibody endplate for added strength
  • Innovative design provides superior lens brightness, uniformity and visual comfort
  • Unibody endplates are securely attached with interlocking tabs and screws
  • Four auxiliary fixture end suspension points provided
  • Endplates have integral Grid-lock feature for safety and convenience
Controls
  • Standard with 0-10V dimming driver (10% standard, 1% optional)
  • WaveLinx wireless sensor compatible for standalone, controlled, connected, and IoT capability
  • SVPD sensor compatible for standalone functionality
  • Low-voltage sensor and driver compatible for WaveLinx Low-Voltage and DLVP applications
  • DALI 2.0, Lutron, and step-dimming available
Electrical
  • TM-21 life at 60,000 hours up to L88 and calculated L70 exceeds 162,000 hrs.
  • Available in 3000K, 3500K, 4000K or 5000K with a minimum of 80 CRI
  • Color accuracy ≤3-Step MacAdam ellipse (SDCM)
  • Drivers available in 120-277V and 347V
  • Tunable white options available with Cooper Lighting Solutions' VividTune Emergency Battery Pack Option
  • Optional 120V-277V integral emergency battery pack available in 7-watts, 14-watts
  • 90-minute batteries provide constant power to the
LED system
  • Test switch/indicator button can be tested safely from the ground using a laser pointer
  • Emergency/generator transfer options available
Frame/Optical Shielding
  • Die formed, flat steel door with frosted #12 pattern acrylic prismatic lens
  • Primary stocking skus come standard with robust .095 lens
  • Other options available for maximum versatility
Compliance
  • IC rated for insulation contact
  • cULus listed for damp locations
  • RoHS compliant
  • Tested to IESNA LM-79 and LM-80
  • Stated life per TM21 standards
  • Can be used for State of California Title 24 high efficacy luminaire
