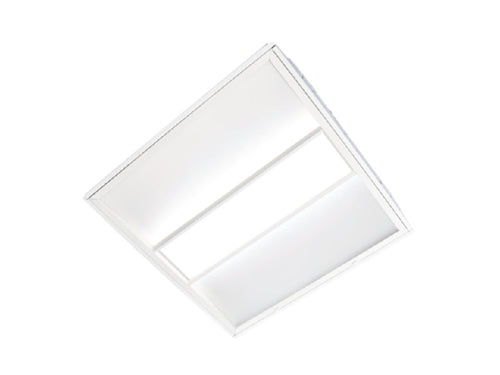

Metalux 22RLN-LD5-25-UNV-EL7W-L835-A3/8-5/18GDIM-CD1-U 2'x2' LED Recessed Specification Grade Rectilinear Shielding, 2500 Lumens, 120-277V, 7-Watt, Emergency Battery Pack, 3500K, 3/8" Flex with 0-10V Dimming Leads, 0-10V Driver, Unit Pack
Metalux 22RLN-LD5-25-UNV-EL7W-L835-A3/8-5/18GDIM-CD1-U 2'x2' LED Recessed Specification Grade Rectilinear Shielding, 2500 Lumens, 120-277V, 7-Watt, Emergency Battery Pack, 3500K, 3/8" Flex with 0-10V Dimming Leads, 0-10V Driver, Unit Pack
Regular price
Price:
$670.61
Regular price
Price:
Sale price
$670.61
Unit price
per
MODEL: Metalux-22RLN-1294
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction

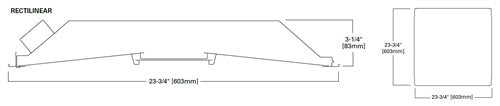

- 5-5/8" housing constructed of die-formed, code gauge cold rolled steel
- Full length die-formed stiffeners and unibody endplate for added strength
- Four auxiliary fixture end suspension points provided
- Wireway cover removable without tools
- Endplates provided with Grid-Lock feature for safety
- These fixtures may have MWS (Modular Wiring System) added. Consult factory for details.
- 0-10V dimming to 1% standard
- WaveLinx wireless sensor compatible for standalone, controlled, connected, and IoT capability
- SVPD sensor compatible for standalone functionality
- Low-voltage sensor and driver compatible for WaveLinx Low-Voltage and DLVP applications
- DALI 2.0, Lutron, and step-dimming available
- LED’s available in 3000K, 3500K, or 4000K at 80 CRI minimum and 90 CRI minimum
- Color accuracy ≤3-Step MacAdam ellipse (SDCM)
- TM21 life at 60,000 hours up to L92 and calculated L70 exceeds 290,000 hrs.
- Drivers available in 120-277V and 347V
- Tunable white options available with Cooper Lighting Solutions' Vividtune
- Optional 120-277V emergency battery available in 7W or 14W
- 90-minute backup period for code compliance
- Test switch with laser pointer and testing from floor feature for ease of use
- EZ Key feature prevents accidental discharge during construction
- Generator transfer options available
- Multistage, iron phosphate pretreatment
- 90% reflective, matte white enamel finish
- Full fixture housing painted after fabrication
- Positive cam action steel latches with baked white enamel finish
- Safety-lock T-hinges allow hinging and latching either side
- Door assembly hinges down for easy access to driver and LEDs from below
- Die formed, heavy gauge flat steel door
- Mitered corners and painted after fabrication
- Baked matte white enamel finish
- Positive light seals
- Acrylic frosted lens
- IC rated for insulation contact
- cULus listed for damp locations
- RoHS compliant
- Tested to IESNA LM-79 and LM-80
- Stated life tested to TM21 standards
- Can be used for State of California Title 24 high efficacy luminaire
- Five year warranty standard. Optional ten year warranty available.
