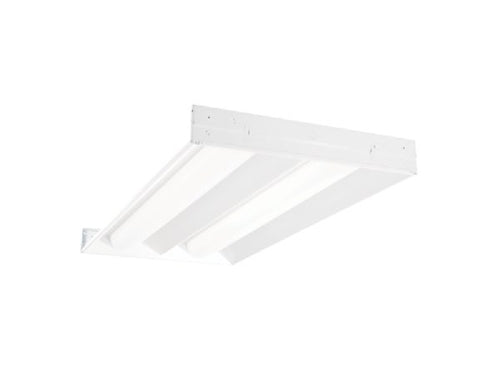

Metalux 24AC-LD5-55-UNV-L830-CD1-U 2'x4' LED Recessed Troffer, 5500 Lumen, 3000K, 0-10V Driver
Metalux 24AC-LD5-55-UNV-L830-CD1-U 2'x4' LED Recessed Troffer, 5500 Lumen, 3000K, 0-10V Driver
Regular price
Price:
$544.38
Regular price
Price:
Sale price
$544.38
Unit price
per
MODEL: Metalux-24AC-1249
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Construction
Construction
- Shallow 3-1/4" deep housing is die-formed of code gauge, prime cold rolled steel
- Heavy gauge endplates are securely attached with screws for strength and rigidity and the elimination of gaps
- End plates have integral grid-lock feature for safety and convenience
- Four auxiliary fixture end suspension points provided
- Large access plate for supply connection
- Driver can be accessed from below without tools
- 0-10V dimming to 1% standard
- WaveLinx wireless fixture for sensor-less wireless control
- WaveLinx wireless sensor compatible for connected and IoT capability
- SVPD sensor compatible for standalone functionality
- Low-voltage sensor and driver compatible for DLVP applications
- DALI 2.0, Lutron, and step-dimming available
- LED’s available in 3000K, 3500K or 4000K with a minimum CRI of 80
- Color accuracy ≤3-Step MacAdam ellipse (SDCM)
- Projected life is 60,000 hours at 89% lumen output
- Electronic drivers available for 120-277V and 347V applications
- Optional 120-277V emergency battery available in 7W or 14W
- 90-minute backup period for code compliance
- Test switch with laser pointer and testing from floor feature for ease of use
- EZ Key feature prevents accidental discharge during construction
- Generator transfer options available
- Multistage, iron phosphate pretreatment ensure maximum bonding and rust inhibition
- White enamel finish
- High reflectance baked matte white enamel finish for luminous uniformity
- Positively retained frosted acrylic profile lenses provide a soft but effective distribution of light
- Modules are UL recognized components
- Indoor luminaires are cULus listed for 25 degreeC ambient environments
- Complies with IESNA LM-79
- LEDs compliant with LM-80 standards
- DesignLights Consortium Qualified and classified for both DLC Standard and DLC Premium
- Five-year warranty standard.
