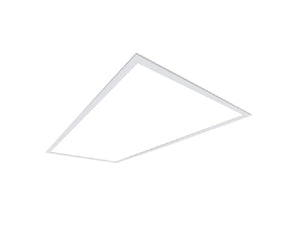

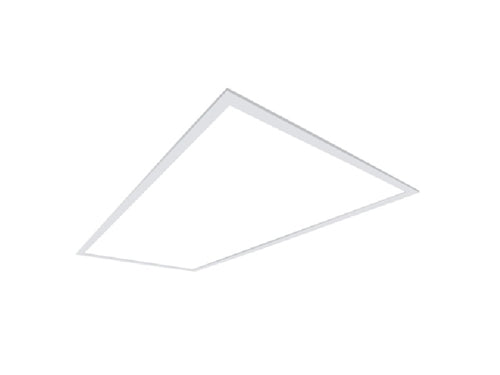

Metalux 24CGTX-72-L830 2'x4' Configurable LED Recessed Panel, 7200 Lumens, Smooth White Frosted Lens, 120-277V, 80 CRI, 3000K
Metalux 24CGTX-72-L830 2'x4' Configurable LED Recessed Panel, 7200 Lumens, Smooth White Frosted Lens, 120-277V, 80 CRI, 3000K
Regular price
Price:
$260.36
Regular price
Price:
Sale price
$260.36
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Robust die-formed steel back plate to ensure durability
- Housing is absent of holes to resist debris/bug intrusion
- Aluminum frame weld and ground for a seamless appearance
- Integral grid/EQ clips provided and include suspension / wire retention features
- Grid clip includes fold up hang points. Use FPSUS24-ML or other desired suspension methods for direct suspension
- Large junction box constructed of code gauge galvanized steel with access plate
- Multiple 7/8" KO’s provided, suitable for up to 12AWG wiring
- Surface kits available for use in grid or hard surfaces
- Factory installed MWS fixture fitting or flexible conduit available to reduce installation time
- FPSUS2-ML is a 2-point suspension kit includes aircraft cable, carabiner, ceiling connection, SO cord, cord connectors, round 4" J-box cover and #8 sheet metal screws
- 0-10V dimming to 10% standard, 1% dimming available
- Integrated WaveLinx options provide wireless individual fixture control and enable code compliance, increased energy savings, grouping of fixtures, and connection to WaveLinx control systems
- DALI 2.0, Lutron, and step-dimming available
- TM21 life at 60,000 hours up to L86 and calculated L70 exceeds 120,000 hrs
- Driver rated for FCC part 15 Class B for use in residential or commercial applications
- LED's available in 3000K, 3500K, 4000K, or 5000K at 80 CRI or 90 CRI minimum
- Color accuracy ≤3-Step MacAdam ellipse (SDCM)
- Integral emergency battery pack options available in 7W, 10W, and 14W. Test switch located on fixture lens band. Self-diagnostic options available
- Emergency/generator transfer options available
- Drivers available in 120-277V; 0-10V drivers also available in 347V
- Micro-optics enable uniform distribution of the LEDs for uniform lens illumination
- Frosted smooth lens provides uniform illumination across the entire lens
- Durable lens with surface texture to minimize scratch and impact damage
- cULus listed for 25°C ambient environments, indoor applications
- IC rated for direct insulation contact
- UL Damp Location listed
- IP5X rated from the room side with no modification needed
- Tested to IESNA LM-79 and LM-80
- Stated life per TM21 standards
- DesignLights Consortium Qualified and classified for DLC Standard and DLC Premium, refer to www.designlights.org for details.
- Suitable for State of California Title 24 high efficacy luminaire
- FCC part 15 class A compliant
- Fixture is rated for NSF/ANSI standard 2 - Light fixture for Splash Zone and Non-Food Zone
- Five year warranty
- Extended warranty to 10 years available
