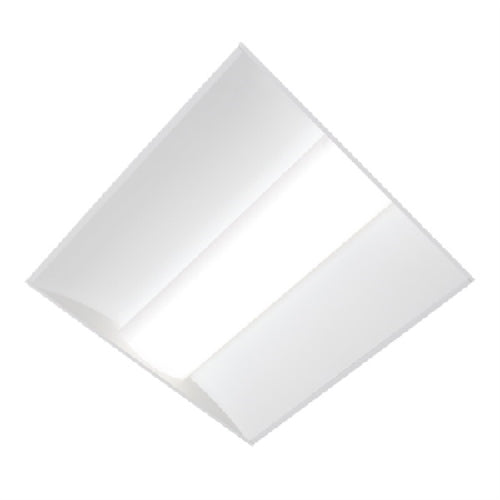

Metalux 24CZ2-40-HRP-UNV-L840-CD1-U 2'x4' Cruze LED, 4000 Lumens, High-Efficiency Round Perforated Inlay, 120-277V, 4000K, Dimmable
Metalux 24CZ2-40-HRP-UNV-L840-CD1-U 2'x4' Cruze LED, 4000 Lumens, High-Efficiency Round Perforated Inlay, 120-277V, 4000K, Dimmable
Regular price
Price:
$224.38
Regular price
Price:
Sale price
$224.38
Unit price
per
MODEL: Metalux-24CZ2-546
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Construction
Construction
- Die formed of code gauge prime cold rolled steel with full length die-formed stiffeners
- Unibody endplates attached with interlocking tabs and screws
- Hemmed side flanges
- Four auxiliary fixture end suspension points
- Integral Grid-lock feature for endplates for added safety
- Optional earthquake clips available
- 0-10V dimming to 1% standard
- WaveLinx wireless fixture for sensor-less wireless control
- WaveLinx sensor compatible for IoT capability
- Enlighted sensor compatible for IoT capability
- SVPD sensor compatible for out of the box functionality
- DLVP sensor and driver compatible for low voltage applications
- DALI 2.0, Lutron, and step-dimming available
- LED's available in 3000K, 3500K, 4000K, or 5000K at 80 CRI minimum and 90 CRI minimum
- TM21 life at 60,000 hours up to L94 and calculated L70 exceeds 290,000 hrs.
- Drivers available in 120-277V and 347V
- Color Tuning options available with Cooper Lighting Solutions' Vividtune
- Optional UL924 emergency battery available in 7W and 14W
- 90-minute backup period for code compliance
- Laser point test from floor for ease of use on 7W and 14W versions
- EZ Key feature prevents accidental discharge during construction on 7W and 14W versions
- Integral UL924 emergency transfer relay options available
- Multistage, iron phosphate pretreatment
- 90% reflective, matte white enamel finish
- Full fixture housing painted after fabrication
- Ribbed acrylic frosted lens standard
- Optional smooth acrylic frosted lens (S)
- Optional metal perforated acrylic lens (RDP)
- Optional High-Efficiency Round Perf Inlay (HRP)
- IC rated for insulation contact
- cULus listed for damp locations
- UL924 luminaire listing available, see Emergency
- RoHS compliant
- Tested to IESNA LM-79 and LM-80
- Stated life tested to TM21 standards
- Can be used for State of California Title 24 high efficacy luminaire
- Five-year warranty standard.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
