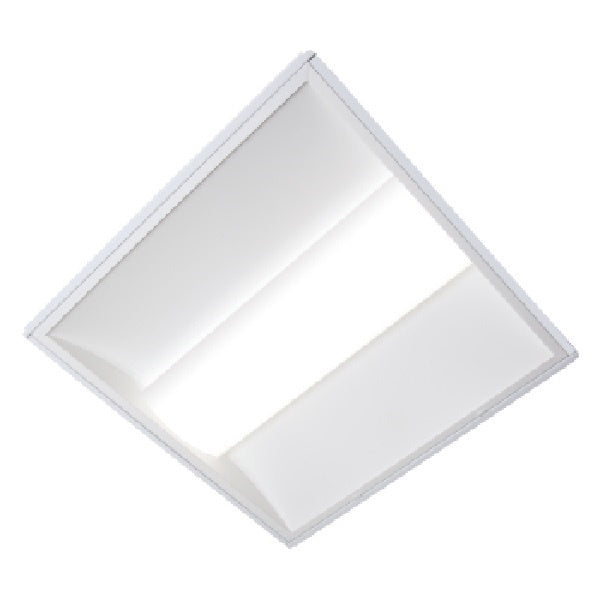

Metalux 24CZ2-50HE-UNV-L835-CD1-U 2'x4' Cruze LED, High Efficacy, 5000 Lumens, 120-277V, 3500K, 0-10V 1%-100% Dimming
Metalux 24CZ2-50HE-UNV-L835-CD1-U 2'x4' Cruze LED, High Efficacy, 5000 Lumens, 120-277V, 3500K, 0-10V 1%-100% Dimming
Regular price
Price:
$168.03
Regular price
Price:
Sale price
$168.03
Unit price
per
MODEL: Metalux-CZ2-105
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Die formed of code gauge prime cold rolled steel with full length die-formed stiffeners
Unibody endplates attached with interlocking tabs and screws
Hemmed side flanges
Four auxiliary fixture end suspension points
Integral Grid-lock feature for endplates for added safety
Optional earthquake clips available
Integrated Controls
LED and Light Engine
Construction
Die formed of code gauge prime cold rolled steel with full length die-formed stiffeners
Unibody endplates attached with interlocking tabs and screws
Hemmed side flanges
Four auxiliary fixture end suspension points
Integral Grid-lock feature for endplates for added safety
Optional earthquake clips available
Integrated Controls
- 0-10V dimming to 1% standard
- WaveLinx wireless fixture for sensor-less wireless control
- WaveLinx sensor compatible for IoT capability
- LumaWatt Pro sensor compatible for IoT capability
- SVPD sensor compatible for out of the box functionality
- DLVP sensor and driver compatible for low voltage applications
- DALI 2.0, Lutron, and step-dimming available
LED and Light Engine
- LEDs available in 3000K, 3500K, 4000K, or 5000K at 80 CRI minimum and 90 CRI minimum
- TM21 life at 60,000 hours up to L94 and calculated L70 exceeds 290,000 hrs.
- Drivers available in 120-277V and 347V
- Color Tuning options available with Eaton's Vividtune
Emergency Battery Options (Optional)
- Optional 120-277V emergency battery available in 7W or 14W
- 90-minute backup period for code compliance
- Test switch with laser pointer and testing from floor feature for ease of use
- EZ Key feature prevents accidental discharge during construction
- Generator transfer options available
Finish
- Multistage, iron phosphate pretreatment
- 90% reflective, matte white enamel finish
- Full fixture housing painted after fabrication
Shielding
- Ribbed acrylic frosted lens standard
- Optional smooth acrylic frosted lens (S)
- Optional metal perforated acrylic lens (RDP)
- Optional High-Efficiency Round Perf Inlay (HRP)
Compliance
- IC rated for insulation contact
- cULus listed for damp locations
- RoHS compliant
- Tested to IESNA LM-79 and LM-80
- Stated life tested to TM21 standards
- Can be used for State of California Title 24 high efficacy luminaire
Warranty
- Five year warranty standard.
