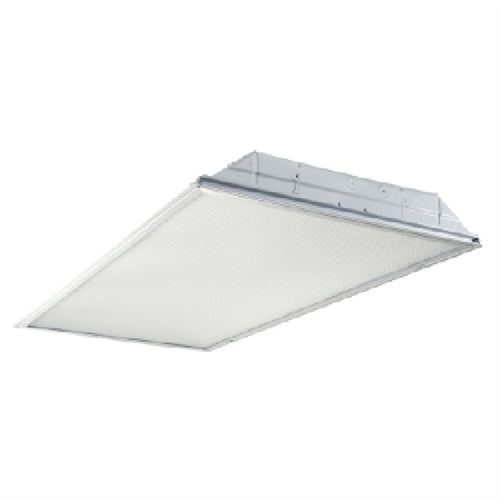

Metalux 24GRFA-LD5-42-F1-UNV-L840-HCD1-U 2'x4' LED Recessed Troffer, Flush White Extruded Aluminum Door, 4200 Lumens, 0.095" Shielding, 120-277V, 80 CRI, 4000K, 1%-100% 0-10V Dimming
Metalux 24GRFA-LD5-42-F1-UNV-L840-HCD1-U 2'x4' LED Recessed Troffer, Flush White Extruded Aluminum Door, 4200 Lumens, 0.095" Shielding, 120-277V, 80 CRI, 4000K, 1%-100% 0-10V Dimming
Regular price
Price:
$336.88
Regular price
Price:
Sale price
$336.88
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Rigid housing is die formed of code gauge prime cold rolled steel
- Full length die-formed stiffeners and unibody endplate for added strengt
- Innovative design provides superior lens brightness, uniformity and visual comfort
- Unibody endplates are securely attached with interlocking tabs and screws
- Four auxiliary fixture end suspension points provided
- Endplates have integral Grid-lock feature for safety and convenience
Controls
- Standard with 0-10V dimming driver (10% standard, 1% optional)
- Integrated WaveLinx options provide wireless individual fixture control and enable code compliance, increased energy savings, grouping of fixtures, and connection to WaveLinx control systems
- DALI 2.0, Lutron, and step-dimming available
Electrical
- TM-21 life at 60,000 hours up to L88 and calculated L70 exceeds 162,000 hrs.
- Available in 3000K, 3500K, 4000K or 5000K with a minimum of 80 CRI
- Color accuracy ≤3-Step MacAdam ellipse (SDCM)
- Drivers available in 120-277V and 347V
- Tunable white options available with Cooper Lighting Solutions’ VividTune
Emergency Battery Pack Option
- 120V-277V integral emergency battery pack comes in 7-watts, 10-watt, or 14-watts
- Self-diagnostic emergency battery available in 10 or 14-watts (NFPA 101 Life Safety Code®)
- Constant power to the LED system for controlled, predictable discharge
- Integrated test switch/indicator light visible from floor
- Min. 90-minute backup period for code compliance
- Integral emergency transfer relay available for generator equipped power systems
Frame/Optical Shielding
- Die formed, flat steel door with frosted #12 pattern acrylic prismatic lens
- Primary stocking skus come standard with robust .095 lens
- Other options available for maximum versatility
- Replacement lenses available, contact factory
Compliance
- IC rated for insulation contact
- cULus listed for damp locations
- RoHS compliant
- Tested to IESNA LM-79 and LM-80
- Stated life per TM21 standards
- Can be used for State of California Title 24 high efficacy luminaire
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
