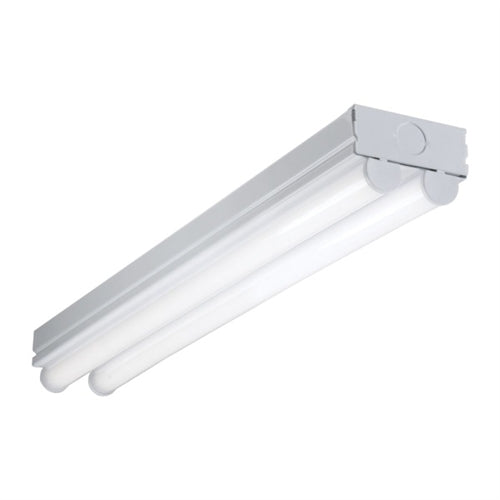

Metalux 2ST2L20SC3 2' 19W Dimming LED Striplight, CCT Selectable 3500K, 4000K, 5000K, 80 CRI, 0-10V Dimming
Metalux 2ST2L20SC3 2' 19W Dimming LED Striplight, CCT Selectable 3500K, 4000K, 5000K, 80 CRI, 0-10V Dimming
Regular price
Price:
$50.34
Regular price
Price:
Sale price
$50.34
Unit price
per
MODEL: Metalux-ST-1324
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Die formed post painted white steel construction
- U-bracket continuous row mount aligner included
- Snap and lock tool-less channel cover for easy maintenance
- Powder coated white finish for a clean exterior
- Single channel width at 3.6†wide
- Available sizes: 2ft, 4ft and 8ft lengths
Electrical
- 120-277V electronic driver, FCC part 15 Class B at 120V and Class A at 277V
- Standard 0-10V low voltage dimming down to 10%
- LED and Light Engine
- Dedicated 4000K CCT in 2ft and 8ft sizes
- CCT Selectable option for maximum color flexibility: choose from 3500K, 4000K or 5000K
- L70 at >50,000 hours (TM-21), over 23 years at 6 hrs/day
- LED modules comply with IESNA LM-79 and LM-80 standards
- Purple and grey (pink) low voltage dimming leads required from 0-10V dimmer switch to fixture
- For Selectable SKU’s Default CCT setting is 4000K
Emergency Battery Pack Option -- Sold Separately
- Field installed remote mount UNV battery pack available, 7 and 14 watts, ships separately
- Batteries provide 90 minutes of backup power
- Factory installed battery pack available via modshop
Shielding
- Classic double fluorescent tube exterior for aesthetic
- Impact resistant, UV-stabilized frosted polycarbonate lens
- Standard LED blended optics for wide area coverage up to 15' mounting

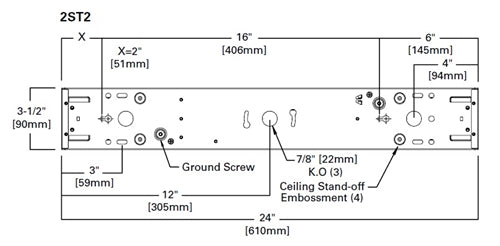

Installation
Compliance and Certifications- Surface or suspended mount capable
- Channel and end knockouts (7/8") for conduit entry and continuous row
- Wire nuts and aligner included
- UL/cUL listed for damp location
- Rated for 0F (-20C) to 104F (40C) ambient operating temperatures
- RoHS compliant
- DesignLights Consortium Qualified and classified for DLC Standard, refer to www designlights.org for details
- Suitable for use in closet storage spaces when installed in accordance with NFPA-70 and NEC 410.16 spacing requirements
- Five-year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
