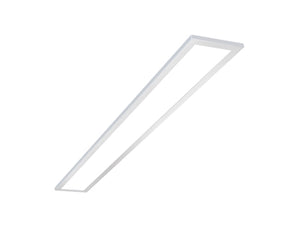

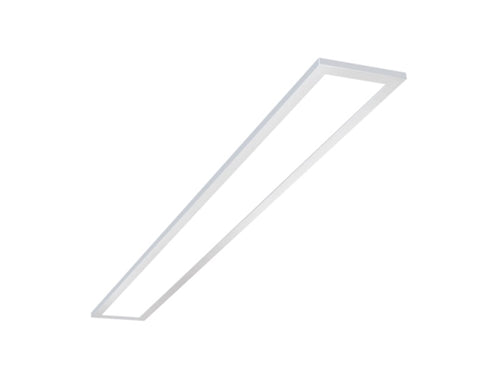

Metalux 4RBG6-SL1-L8SCT3 4 3/16" Aperture Slot, 6" Grid Spacing, 4' Length, Lumen and CCT Selectable, 10% - 100% 0-10V Dimming
Metalux 4RBG6-SL1-L8SCT3 4 3/16" Aperture Slot, 6" Grid Spacing, 4' Length, Lumen and CCT Selectable, 10% - 100% 0-10V Dimming
Regular price
Price:
$210.87
Regular price
Price:
Sale price
$210.87
Unit price
per
MODEL: Metalux-4RBG-1308
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Ideal for use in shallow plenum or low ceiling spaces; under 2-3/8" with room to spare in tight spaces
- Aluminum extruded frame, precision welded and ground for a seamless appearance
- Architectural matte white powder coat paint
- Steel back plate, attached to the frame with multiple screws to ensure a tight fit
- Integral grid clips
- Junction / wiring box incorporates 8 qty. 7/8" KO’s (2 on the top, 2 each on 3 sides of the box) for quick and easy electrical entry from a variety of directions
- Factory or field installed flexible conduit with dimming leads options available.
- Standard with 0-10V dimming driver (10% standard, 1% optional)
- WaveLinx wireless sensor compatible for standalone, controlled, connected, and IoT capability
- Low-voltage sensor and driver compatible for WaveLinx Low-Voltage and DLVP applications
- DALI 2.0, Lutron, and step-dimming available
- Stock driver enables selectable lumens and color; approximately 500, 750 or 1000 lumens per foot AND 3000K, 3500K or 4000K CCT with easy access selector switch
- UNV 120 - 277V driver with 0-10V dimming to 10% standard
- 347V version available
- 48V - Low Voltage version available
- DALI 2.0, 1% dimming, Lutron and Step dimming versions available in fixed lumens and fixed colors in 3000K, 3500K or 4000K.
- 120V-277V integral emergency battery pack comes in 7-watts, 10-watt, or 14-watts
- Self-diagnostic emergency battery available in 10 or 14-watts (NFPA 101® Life Safety Code®)
- Constant power to the LED system for controlled, predictable discharge
- Integrated test switch/indicator light visible from floor
- Min. 90-minute backup period for code compliance
- Integral emergency transfer relay available for generator equipped power systems
Compliance
- cULus listed for 25C ambient environments
- IC rated for direct insulation contact
- RoHS compliant
- Damp location listed standard
- IP40 - ingress protection
- IESNA LM-79 and LM-80 compliant
- NEMA 410 compliant
- DesignLights Consortium qualified and classified for
- Can be used for State of California Title 24 high efficacy luminaire
- Five year limited warranty standard
- Ten year limited warranty available
- Acrylic light guide with embossed optical control features optimizes light extraction
- Scratch and impact resistant diffuser provides uniformity and reduced glare at the aperture
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
