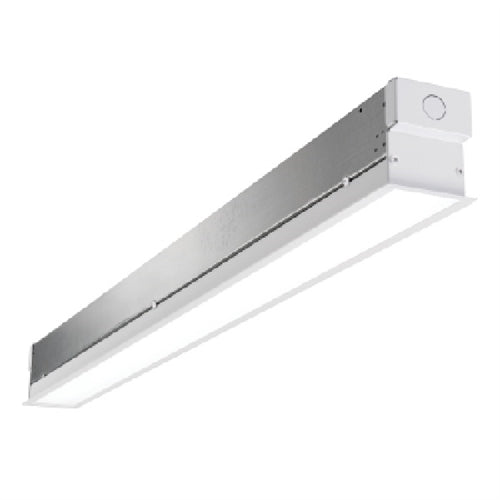

Metalux 4RCG-4-56D-L835-U 18W 4' LED Linear Recessed, 560 Lumens per Feet, 80 CRI, 3500K, 120-277V
Metalux 4RCG-4-56D-L835-U 18W 4' LED Linear Recessed, 560 Lumens per Feet, 80 CRI, 3500K, 120-277V
Regular price
Price:
$310.70
Regular price
Price:
Sale price
$310.70
Unit price
per
MODEL: Metalux-RCG-11
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Construction
Construction
- Extruded aluminum rails with code-gauge sheet metal housing
- Sheet metal endcaps with KO and offset for “trofferlike” through wiring for easy row mounting
- Nominal 4' and 8' illuminated sections

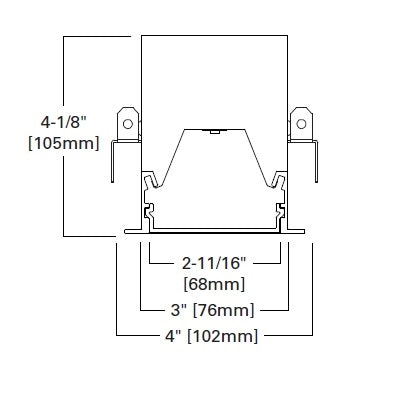

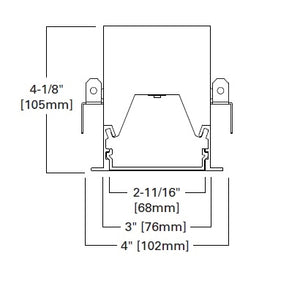

- Narrow aperture (under 3") with 4 inch grid spacing
- 0-10V dimming to 1% standard
- WaveLinx sensor compatible for IoT capability
- LumaWatt Pro sensor compatible for IoT capability
- SVPD sensor compatible for out of the box functionality
- DALI 2.0 and Lutron available
- LED’s available in 3000K, 3500K, or 4000K at 80 CRI minimum and 90 CRI minimum
- Optional 120-277V emergency battery available in 7W or 14W
- 90-minute backup period for code compliance
- Test switch with laser pointer and testing from floor feature for ease of use
- EZ Key feature prevents accidental discharge during construction
- Full fixture housing, endplates and rails are painted after fabrication
- Fixture housing is white, electrostatically applied, polyester powder coat paint
- Aluminum rails are matte-white
- Frosted flush lens standard
- Optional frosted flush asymmetric lens (A option) available from factory or as accessory for field installation where needed
- IC rated for insulation contact
- cULus listed for damp locations
- RoHS compliant
- NYC compliant
- Tested to IESNA LM-79 and LM-80
- Stated life tested to TM21 standards
- Can be used for State of California Title 24 high efficacy luminaire
- Five year warranty standard.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
