Home > Halo Lighting > Metalux 4SNX-22SL-LW-UNV-L840-CD1-EL10W-U 4' Commercial LED Striplight, 2200 Lumens, Round Wide Full Frost Lens, 120-277V, 80 CRI, 4000K, 0-10V Dimming, 1 Driver, 10W Emergency Battery Pack

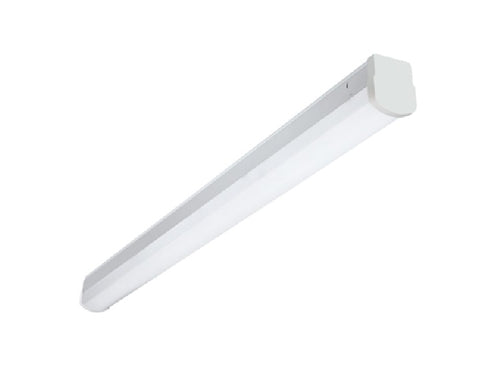

Metalux 4SNX-22SL-LW-UNV-L840-CD1-EL10W-U 4' Commercial LED Striplight, 2200 Lumens, Round Wide Full Frost Lens, 120-277V, 80 CRI, 4000K, 0-10V Dimming, 1 Driver, 10W Emergency Battery Pack
Metalux 4SNX-22SL-LW-UNV-L840-CD1-EL10W-U 4' Commercial LED Striplight, 2200 Lumens, Round Wide Full Frost Lens, 120-277V, 80 CRI, 4000K, 0-10V Dimming, 1 Driver, 10W Emergency Battery Pack
Regular price
Price:
$571.99
Regular price
Price:
Sale price
$571.99
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Die-formed cold rolled steel channel and cover
- Convertible end plate for continuous row alignment
- Tool-less channel/wireway cover and captive electrical assembly
- Groove for Tong Hanger
- Surface, wall, pendant or stem mount capable.
- See available mounting options.
- Standard with 0-10V dimming driver (10% standard, 1% optional)
- Integrated WaveLinx sensor options provide wireless individual fixture control and enable code compliance, increased energy savings, grouping of fixtures, and connection to WaveLinx control systems
- DALI 2.0 and step-dimming available
- For motion control, reference sensor locations for both end and middle of the row applications
Emergency Battery Pack Option
- Optional 120V-277V integral emergency battery pack available in 7W or 14W
- 90-minute backup period for code compliance
- Generator transfer options available
Electrical
- Long-life LED system with electrical driver for optimal performance
- LED’s available in 3000K, 3500K, 4000K or 5000K with CRI of 80 standard or optional 90 CRI
- Three CCT select option available for 80 or 90CRI in warm to cool color temps, see ordering logic
- Lumen select option available in full, medium or low brightness, see performance table and ordering logic
- Electronic drivers available for 120-277V, 347V and 480 applications
- Operating temperature of -20°C to 50°C
- Default CCT/Lumen setting is 4000K and Med Power
Finish
- Standard baked white enamel finish with multistage, iron phosphate pretreatment. Baked white enamel finish is standard
- PAF option for added rust protection
- Other paint finishes available: Black (BLK) and GRAY (GR)

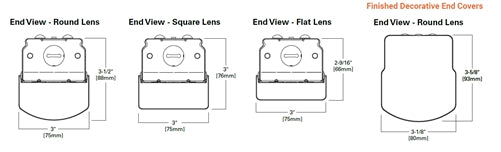

Shielding
- Offered with acrylic lens and molded lens cap
- Flat lens with LED diffuse blend (FDL) for general distribution is recommended option
- Round lens offered in three distributions: Clear with linear ribs (LC), semi-frost for narrow distribution, and frost for wide distribution (LW)
- Square frost lens option for wide distribution (SLW) is available
Compliance
- cULus Listed for damp locations
- RoHS compliant
- Complies with IESNA LM-79 and LM-80 standards
- NEMA 410 compliant (drivers)
- State of California Title 24 high efficacy luminaire
- DesignLights Consortium® Qualified and classified for DLC Standard and DLC Premium (refer to www.designlights.org)
- Suitable for closet use when installed to NEC 410.16 spacings standards
Limited Warranty
- Five year limited warranty
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
