Home > Halo Lighting > Metalux 8AWS-L3C3-UNV-WLS 86.2W 8' 5.5" Achieva LED Troffer, Selectable CCT Color Temperature, 12019 Lumens, 80 CRI, 120-277V, WaveLinx LITE Wireless Integrated Sensor

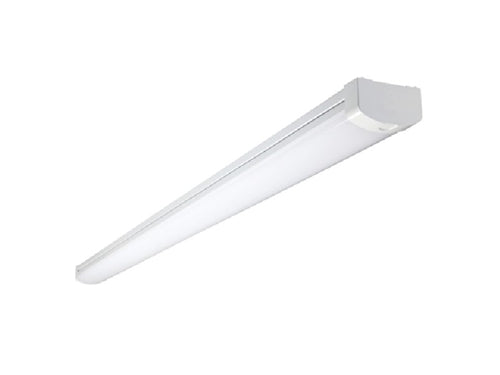

Metalux 8AWS-L3C3-UNV-WLS 86.2W 8' 5.5" Achieva LED Troffer, Selectable CCT Color Temperature, 12019 Lumens, 80 CRI, 120-277V, WaveLinx LITE Wireless Integrated Sensor
Metalux 8AWS-L3C3-UNV-WLS 86.2W 8' 5.5" Achieva LED Troffer, Selectable CCT Color Temperature, 12019 Lumens, 80 CRI, 120-277V, WaveLinx LITE Wireless Integrated Sensor
Regular price
Price:
$368.84
Regular price
Price:
Sale price
$368.84
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Cold rolled steel die form housing with finished ends
- Post painted with matte white powder coating
- High-impact plastic end caps
Shielding
- Smooth frosted ribbed polycarbonate IK06 rated lens
- Standard LED blended for wide area coverage
- Replaces 1 lamp through 4 lamp fluorescent wraps or low-bay fluorescent linear fixtures
Installation
- Surface (wall or ceiling) mount via junction box or direct to surface
- Suspension mount capable using standard Y-toggle mounting kits
- Designed for continuous row mounting for end to end light with row mount bracket accessory kits
Electrical
- Projected life of L70 at 50,000 hours
- Efficacy up to 165 lm/W
- 0-10V dimming down to 5%
Compliance
- UL/cUL listed for damp location
- Rated for -4F (-20C) to 104F (40C) ambient operating temperatures
- RoHS compliant
- LED complies with IESNA LM-79 and LM-80
- Options to meet California Title 24 Residential and
Non-Residential compliance
- DesignLights Consortium Qualified and classified for DLC Standard, refer to www.designlights.org for details.
Limited Warranty
- Five year limited warranty
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
