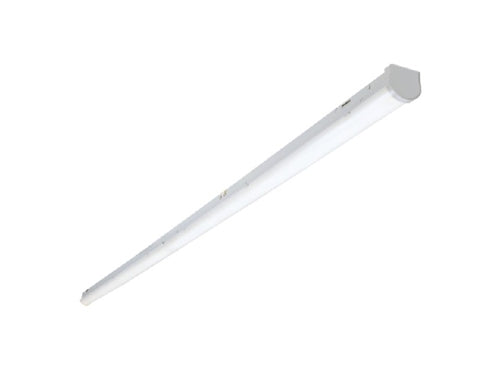

Metalux 8SLSTPSLC-UNV Linear LED Striplight, 8 ft, 4000-11000 lumens, 3500K 4000K 5000K, UNV, 0 to 10V Dimmable
Metalux 8SLSTPSLC-UNV Linear LED Striplight, 8 ft, 4000-11000 lumens, 3500K 4000K 5000K, UNV, 0 to 10V Dimmable
Regular price
Price:
$190.50
Regular price
Price:
Sale price
$190.50
Unit price
per
MODEL: Metalux-8SLSTPSLC-UNV
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Fixture channel, cover and end plates are formed from cold rolled steel
- Decorative end caps snap-on for an improved aesthetic finish
- Suitable for either single or continuous row applications
- Long-Life LED system with an energy-efficient electronic driver comes in UNV (120-277V) or 120/347V versions
- Available with 0-10V dimming
- CCT Selectable option for maximum color flexibility: choose from 3500K, 4000K or 5000K
- LED and Light Engine
- Lumen select switch provides three lumen package choices (Low, Medium and High)
- L70 at >50,000 hours (TM-21), over 23 years at 6 hrs/day
- CRI 83 or better
- Maximize energy savings - combine with products like occupancy sensors, daylighting controls, and lighting relay panels
- Standard 0-10V continuous dimming driver works with any standard 0-10V control/dimmer
- Dimming range is 10% to 100% and varies by control device
- Purple and grey (pink) low voltage dimming leads required from 0-10V dimmer switch to fixture
- PIR occupancy sensors enables code compliance. Refer to accessory kit for setting levels
- Sensor kit can be field installed. Add up to (20) 4ft or (10) 8ft fixtures per single sensor kit. Kit is end mount only.
- May be surface, suspended, or wall mounted
- Multiple 7/8" K.O. on back and one on each end
- Jbox cover, wire nuts and decorative end caps included
- cULus listed for damp location rated
- LED’s comply with IESNA LM-79 and LM-80 standards
- DesignLights Consortium Qualified and classified for DLC Standard
- RoHS compliant
- Suitable for use in closet storage spaces when installed in accordance with NFPA-70 and NEC 410.16 spacing requirements
- Five year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
