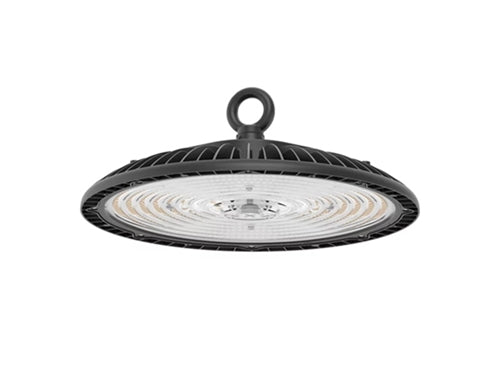

Metalux EZBY-1830C3-MV-BLK LED Round High Bay, Selectable CCT 3000/4000/5000K, 120-347V
Metalux EZBY-1830C3-MV-BLK LED Round High Bay, Selectable CCT 3000/4000/5000K, 120-347V
Regular price
Price:
$139.12
Regular price
Price:
Sale price
$139.12
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Diecast aluminum housing and heatsink
- Polycarbonate lens seals LED for IP65 rating
- Impact protection rating IK08 Lens and IK08 Housing
Electrical
- Selectable power switch for 3 levels of lumen output
- Selectable color switch provides 3000, 4000 and 5000 at CRI >82
- Multi-volt 120 through 347V operation
- 0-10V dimming, 10% to 100% dimming range
- Separate purple and pink 22AWG wires must be pulled from control to luminaire in order to enable 0-10V dimming function

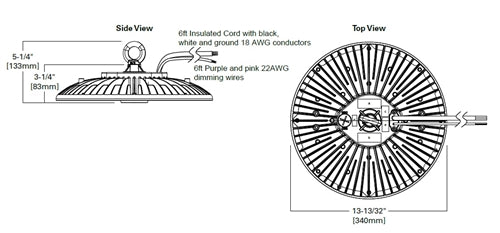

- 6ft (72" long) long power and dimming cords provided
- Integral 6kV surge protection
- Operating temperature of -40°C to 50°C
- Default CCT/Lumen setting is 4000K and HighPower
Optics
- UV stabilized polycarbonate lens
- General coverage and wide distribution
Mounting
- Mounting ring included
- Great for mounting heights between 20 and 40ft high
Compliance
- cULus listed for wet location
- IP65 rated
- IESNA LM-79 and LM-80 standards compliant
- Qualifies as State of California Title 24 nonresidential high efficiency luminaire
- FCC part 15 class A compliant
- DesignLights Consortium Qualified and classified for DLC Premium, refer to www.designlights.org for details
Sensor
- Plug and play low-voltage sensor accessory available
- Sensor installs directly to integral fixture port
- PIR motion sensor with 0-10V control
- Wet location and IP65 rated
- Sensor coverage up to 50ft mounting height (large objects)
- Sensor remote control must be ordered separately
Emergency Pack Option
- 120-347V universal input remote emergency driver accessory available. Must be ordered separately
- Field installed EM driver wires directly to fixture and provides constant power to LED system for 90-minutes
- Test switch/indicator button can be tested safely from the ground using remote control
- EM remote control included with emergency driver accessory
- Accessory comes with grommets and mounting hardware, see EM driver spec sheet
Finish
- Standard black polyester powder coat painted after fabrication
Warranty
- Five year limited warranty
