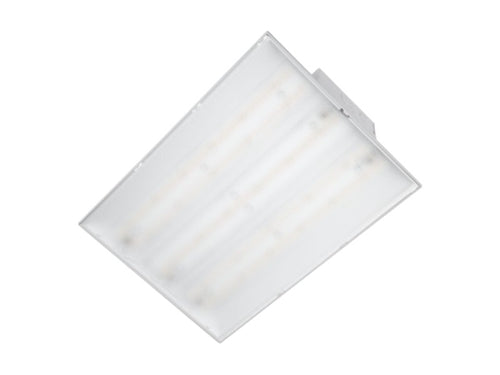

Metalux LHBS-1218-UNV-L84050-U Linear Lensed High Bay, 12000 and 18000 Selectable Lumens, 120-277V, 4000K and 5000K CCT Selectable, 0-10V Dimming Driver
Metalux LHBS-1218-UNV-L84050-U Linear Lensed High Bay, 12000 and 18000 Selectable Lumens, 120-277V, 4000K and 5000K CCT Selectable, 0-10V Dimming Driver
Regular price
Price:
$127.99
Regular price
Price:
Sale price
$127.99
Unit price
per
MODEL: Metalux-LHBS-1329
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Diecast construction with center driver housing for added durability and thermal control
- Three compact sizes available for easy, one-person installation
- Long-life LED system with electrical driver for optimal performance
- Two CCT select option available at ≥ 80CRI in 4000K or 5000K
- Lumen select option available in full, or low brightness, see performance table and ordering logic
- Operating temperature of -20°C to 50°C when suspended 18 inches from ceiling. (Reference ambient chart for other operating temperatures)
- Default CCT/Lumen setting is 4000K and high power
- Diffused lens provides added protection and glare control
- V-hook and chain set included for making LHBS ideally suited for suspension mount
- Accessories available for different mounting options
- 120-277V emergency 20W battery pack
- Constant power to the LED system for controlled, predictable discharge
- Integrated test switch/indicator light visible from floor
- Min. 90-minute backup period for code compliance
- Remote mounted lithium battery installed in field. Factory installed option available.
- Battery meets CEC Title 20 (California Energy Commission) efficiency standards
- Integral occupancy sensor, 600 sqft up to 1250 sqft of coverage for occupancy sensing and daylight harvesting
- 360° or 180° lens available with motion sensor
- Integrated Wavelinx Wireless Sensor option provides 1200 sq. ft. coverage, up to 40' MH
- Standard white polyester powder coat finish painted after fabrication for increased durability and rust inhibition
- cULus Listed for damp locations
- Complies with IESNA LM-79 and LM-80 standards
- Qualifies as State of California Title 24 nonresidential high efficiency luminaire
- FCC part 15 class A compliant
- DesignLights Consortium® Qualified and classified for DLC Standard and DLC Premium
