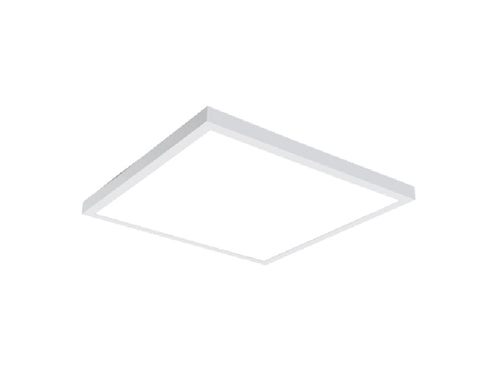

Metalux 22MMS-L3C3-UNV 2'x2' Direct Mount LED Backlit Panel, Multi-Mount CCT Selectable 2700/3000K/3500/4000/5000K, 120-277V with 0-10V Dimming, 5% Standard

Metalux 22MMS-L3C3-UNV 2'x2' Direct Mount LED Backlit Panel, Multi-Mount CCT Selectable 2700/3000K/3500/4000/5000K, 120-277V with 0-10V Dimming, 5% Standard

Price: $122.98
Price: $122.98

MODEL: Metalux-MMS-1494
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Construction
  • Rigid cold rolled steel housing
  • No holes in the housing prevents dust, debris or bug intrusion
  • Equipped with steel bracket for easy surface and recessed mounting
Mounting
  • Integral grid clips secure fixture to the T-Grid
  • Junction box constructed of code gauge galvanized steel with access plate
  • Multiple 7/8" KO’s provided, suitable for up to 12AWG wiring
  • Surface mount bracket included for seamless installation
  • Safety fasteners included to allow hands free wiring and safe installation
Controls
  • Standard UNV 120 - 277V driver with 0-10V dimming, 5% standard
  • Can be used with tile mounted sensor or other remote mount controls
  • Selectable driver for up to five color temperature choices and three lumen package choices
Electrical
  • MMS projected lumen maintenance based on TM21 testing standards is >L82@60,000 hours
  • Driver rated for FCC part 15 Class B for use in residential or commercial applications
  • LEDs are 90 CRI (minimum) and switch to 2700K, 3000K, 3500K, 4000K, or 5000K.
  • Emergency battery pack options available in 7W, 10W, and 14W (not compatible with surface mounting)
  • Default CCT/Lumen Setting: 4000K/Medium
Optical Shielding
  • Acrylic micro-optics enable uniform distribution of LEDs for uniform lens illumination
  • Smooth, frosted lens delivers uniform illumination across the entire lens
  • Durable lens with surface texture to minimize scratch and impact damage
Certifications
  • cULus listed for 25C ambient environments, indoor applications
  • IC rated for direct insulation contact
  • UL damp location listed
  • IESNA LM-79 and LM-80 standards compliant
  • Qualifies as State of California Title 24 high efficiency luminaire
  • DesignLights Consortium Qualified and classified for DLC Standard, refer to www. designlights.org for details
  • FCC part 15 class B (residential) compliant
  • Fixture is rated for NSF/ANSI standard 2 - Light fixture for Splash Zone and Non-Food Zone (approved for recessed mounting only)
Warranty
  • Five year limited standard warranty
