Metalux OHB-24SE-MFL-UNV-L840-CD-U LED High Bay, Frosted Lens, Medium Distribution, 80CRI, 4000K, 0-10V Dimming Driver, 24524 Lumens
Metalux OHB-24SE-MFL-UNV-L840-CD-U LED High Bay, Frosted Lens, Medium Distribution, 80CRI, 4000K, 0-10V Dimming Driver, 24524 Lumens
Regular price
Price:
$282.89
Regular price
Price:
Sale price
$282.89
Unit price
per
MODEL: Metalux-OHB-28
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS

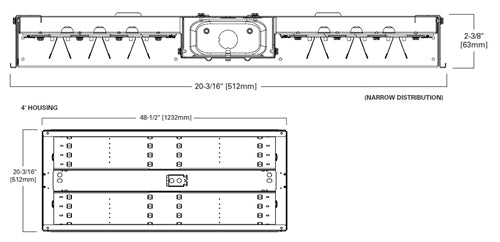

Construction
Construction
- Rugged and durable scalable design with rigid, steel center channel
- Mechanically attached end caps provide strength and durability
- Suspension mounting with optional wire hook and chain set or cable; Single monopoint mounting with SPM tong hanger
- Long-Life LED system coupled with electrical driver for optimal performance
- LEDs available in 3000K, 3500K, 4000K and 5000K with 70 CRI, 80 CRI and 90 CRI options
- Electronic drivers are available for 120-277V, 347V and 480V applications
- 0-10V dimming control (standard)
- Operating temperature of -40 degrees C to 55 degrees C (refer to chart)
- 20-watt, 120-277V integral emergency battery pack available to meet critical life-safety lighting requirements
- 90-minute batteries provide constant power to the LED system, ensuring code- compliance
- Emergency/generator transfer options available (see ordering information for details)
- Precision designed optics deliver even illumination
- Offered in Narrow, medium and wide distributions
- Standard lensing provides additional LED protection and optical control
- Optional wire guards available for more complex environments
- Integral occupancy sensor option provides 600 sq. ft. to up to 1250 sq. ft. of coverage in a maximum mounting height of 45 degrees for occupancy sensing and daylight harvesting
- Integral 360 degrees or 180 degrees motion sensor
- LumaWatt wireless sensor system option
- Integrated Wavelinx Wireless Sensor option provides 1200 sq. ft. coverage
- WaveLinx wireless enabled (does not include sensor)
- White enamel finish preceded by a multistagecleaning cycle
- Iron phosphate coating with rust inhibitor protects against contaminants and oxidation
- cULus listed for damp locations
- LED modules comply with IESNA LM-79 and LM-80 standards
- DesignLights Consortium Qualified and classified for both DLC Standard and DLC Premium (refer to www.designlights.org for details)
- Five year warranty standard.
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
