Home > Halo Lighting > Metalux SPHB-1224SE-M-UNV-L84050-CD-U 18' LED Selectable Linear High Bay, Selectable 12000/18000/24000 Lumens, Standard Efficacy, 120-277V, Low-Glare Medium, 80 CRI, Selectable CCT 4000K/5000K, 0-10V Dimming Driver

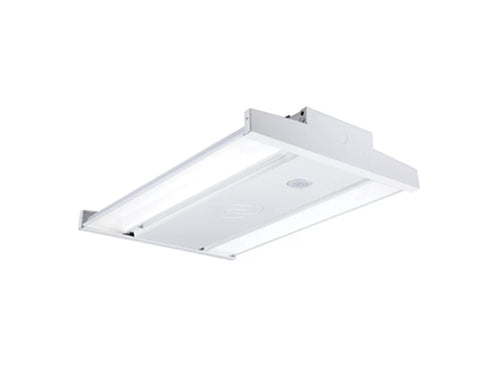

Metalux SPHB-1224SE-M-UNV-L84050-CD-U 18' LED Selectable Linear High Bay, Selectable 12000/18000/24000 Lumens, Standard Efficacy, 120-277V, Low-Glare Medium, 80 CRI, Selectable CCT 4000K/5000K, 0-10V Dimming Driver
Metalux SPHB-1224SE-M-UNV-L84050-CD-U 18' LED Selectable Linear High Bay, Selectable 12000/18000/24000 Lumens, Standard Efficacy, 120-277V, Low-Glare Medium, 80 CRI, Selectable CCT 4000K/5000K, 0-10V Dimming Driver
Regular price
Price:
$189.75
Regular price
Price:
Sale price
$189.75
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Durable CRS housing provides added protection for LED components and optimal performance
-
Compact, low-profile design for easy installation
-
High impact, polycarbonate lens protects LEDS and provides optimal distribution
-
IK10 rated
-
Long-life LED system with electronic driver for optimal performance
-
Optional selectable power switch for 3 levels of lumen output per mode
-
Optional selectable color switch provides 4000 or 5000K CCT at CRI ≥8
-
Electronic drivers are available for 120-277V, 347V, and 480V application
-
0-10V dimming drivers standard
-
Standard operating temperature range of -40°C to 45°
-
High Ambient option extends operating temperature range to 55°C maximum
- Digital Addressable Lighting Interface (DALI) drivers available for use with Fifth Light controls
- Emergency rated for 0°C to 40°C ambient
- Offered in narrow, low-glare medium, and wide distributions
- Suitable for suspension mounting with V-hangers (included) and optional chain set
- Optional Y-toggle suspension kits are available
- Optional single-point and surface mount kits are available
- cULus listed for damp locations
- ESNA LM-79 and LM-80 standards compliant
- Qualifies as State of California Title 24 nonresidential high efficiency luminaire
- FCC part 15 class A compliant
- DesignLights Consortium® Qualified and classified for both DLC Standard and DLC Premium, refer to www.designlights.org for details.
- Accessory Plug and Play UHBS sensor available for use with optional (SP1) sensor ready port
- Integrated WaveLinx sensor options provide wireless individual fixture control and enable code compliance, increased energy savings, grouping of fixtures, and connection to WaveLinx control systems
- WaveLinx industrial sensors offer installation heights up to 40 feet (45ft major motion) and have coverage patterns up to 5000 square feet (see sensor specifications - field of view
- White powder coat finish painted after fabrication
- Five year limited warranty
downloads
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
