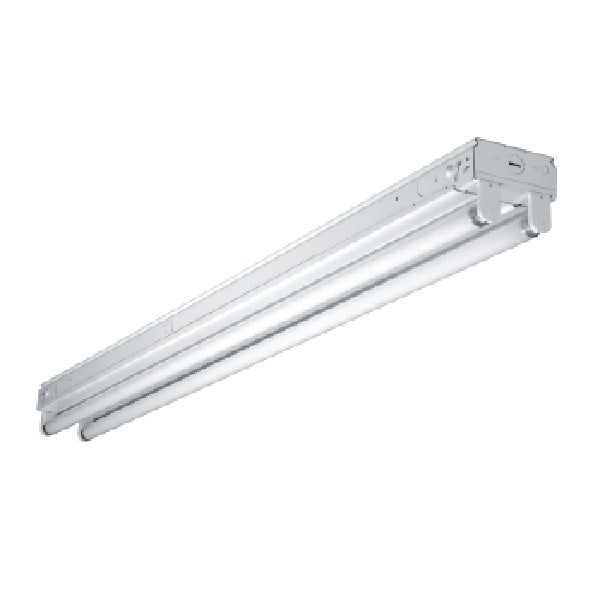

Metalux SSF-232-UNV-EB81-U 4' Standard Strip, 2 Lamp, Electronic Ballast, T8, Flip-up Sockets
Metalux SSF-232-UNV-EB81-U 4' Standard Strip, 2 Lamp, Electronic Ballast, T8, Flip-up Sockets
Regular price
Price:
$47.27
Regular price
Price:
Sale price
$47.27
Unit price
per
MODEL: Metalux-SSF-361
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
The SSF Series is a functional and multi-purpose standard strip family that incorporates premium performance and construction durability.
The SSF Series is a functional and multi-purpose standard strip family that incorporates premium performance and construction durability.
Designed with our easy-to-use Flip-Up socket design, the SSF significantly reduces installation time. The performance and application versatility of this series can be increased by incorporating symmetrical or asymmetrical reflectors. The SSF Series can be installed using various mounting methods and numerous options and accessories are available.
PRODUCT SPECIFICATIONS
Construction
Channel die cold rolled steel with numerous KOs for ease of installation. Groove for Tong Hanger. End plate quickly converts to snap-in channel connector for continuous row alignment. Lamp holder bracket flips in place.
Channel/wireway cover secured with quarter-turn fasteners.
PRODUCT SPECIFICATIONS
Construction
Channel die cold rolled steel with numerous KOs for ease of installation. Groove for Tong Hanger. End plate quickly converts to snap-in channel connector for continuous row alignment. Lamp holder bracket flips in place.
Channel/wireway cover secured with quarter-turn fasteners.
Channel/Wireway Cover
Die formed heavy gauge steel. Tight fit for ease of maintenance. Easily removed without use of tools. Optional reflector available incorporating silver technology enhancements (Silver Lining).
Die formed heavy gauge steel. Tight fit for ease of maintenance. Easily removed without use of tools. Optional reflector available incorporating silver technology enhancements (Silver Lining).
Electrical
Ballasts are CBM/ETL Class "P" and are positively secured by mounting bolts. Rotor Lock lampholders. UL/CUL listed. Suitable for damp locations. (Reference the lamp/ballast data in the Technical Section for specific lamp/ballast requirements.)
Ballasts are CBM/ETL Class "P" and are positively secured by mounting bolts. Rotor Lock lampholders. UL/CUL listed. Suitable for damp locations. (Reference the lamp/ballast data in the Technical Section for specific lamp/ballast requirements.)
Finish
Multistage iron phosphate pretreatment ensures maximum bonding and rust inhibitor. Lighting upgrade, baked white enamel finish. Prepainted material is standard, PAF optional.
Multistage iron phosphate pretreatment ensures maximum bonding and rust inhibitor. Lighting upgrade, baked white enamel finish. Prepainted material is standard, PAF optional.
Application
The SSF Series can be the illumination solution in commercial, industrial, retail and residential applications. Fixtures can be used in storage/utility areas, coves, display cases, shops, task and general area lighting.
The SSF Series can be the illumination solution in commercial, industrial, retail and residential applications. Fixtures can be used in storage/utility areas, coves, display cases, shops, task and general area lighting.
