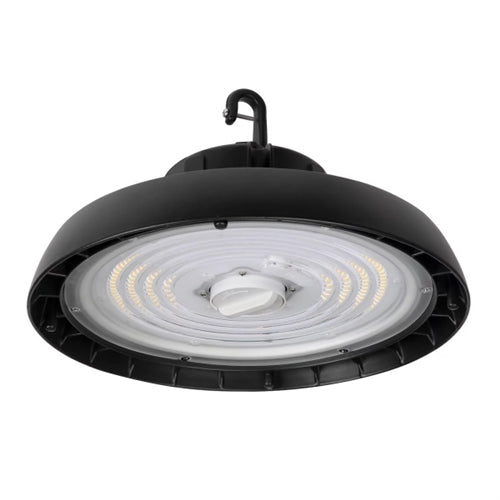

Metalux UHBS-1218-MV-L84050-BLK 80/100/120W LED Round High Bay, 4000K/5000K Selectable CCT, Selectable Lumens, 120-347V, 0-10V Dimming, Black
Metalux UHBS-1218-MV-L84050-BLK 80/100/120W LED Round High Bay, 4000K/5000K Selectable CCT, Selectable Lumens, 120-347V, 0-10V Dimming, Black
Regular price
Price:
$127.71
Regular price
Price:
Sale price
$127.71
Unit price
per
MODEL: Metalux-UHBS-1345
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Construction
Construction
- Diecast aluminum housing and heatsink for durability
- Polycarbonate lens seals LED for IP65 rating
- Lens is IK08 rated
- Long-life LED system with electronic driver for optimal performance
- Selectable power switch for 3 levels of lumen output per model
- Selectable color switch provides 4000 or 5000K CCT at CRI >82
- Multi-volt 120 through 347V operation
- 0-10V dimming, 10% standard
- 7ft (86") long power and dimming cord provided for easier installation
- Integral 4K surge protector
- Operating temperature of -40°C to 50°C
- Default CCT/Lumen setting is 4000K and High Power
- Medium distribution standard
Mounting
Compliance- Mounting hook included
- Designed for suspension mounting with 1/2" threaded hub
- Available ADAPTHUB accessory for 3/4" NPS threaded stem
- cULus listed for wet location
- NEMA 4X, IP65 rated
- IESNA LM-79 and LM-80 standards compliant
- Qualifies as State of California Title 24 nonresidential high efficiency luminaire
- FCC part 15 class A compliant
- DesignLights Consortium® Qualified and classified for DLC Premium, refer to www.designlights.org for details.
- Only the UHBS with Black Finish is NSF rated; Splash, Non-Food Zone - Typical rating for lighting equipment not subjected to direct food contact.
- Plug and play low-voltage sensor accessory available
- Sensor installs directly to integral fixture port
- PIR motion sensor with 0-10V control
- Wet location and IP65 rated
- Up to 50ft mounting height
- Sensor remote control must be ordered separately
Emergency Pack Option
LED system- 120-347V universal input remote emergency driver accessory available
- Field installed EM driver wires directly to fixture
- 90-minute batteries provide constant power to the
- Test switch/indicator button can be tested safely from the ground using remote control
- EM remote control included with accessory
- Accessory comes with grommets and mounting hardware, see EM driver spec sheet.
- White or black polyester powder coat finish painted after fabrication
- Five year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
