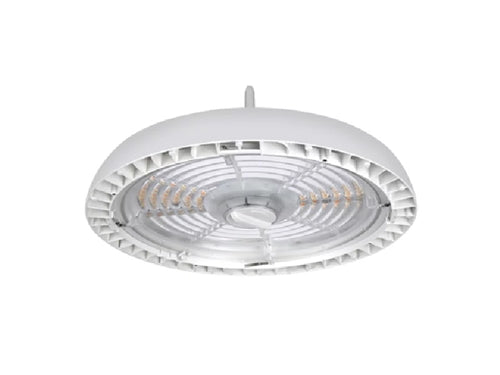

Metalux UHBS2-1218-MV-L8C5-U 80/100/120W LED Round High Bay, Selectable CCT 3000/3500/4000/5000/6500K, Selectable Lumens, 120-347V
Metalux UHBS2-1218-MV-L8C5-U 80/100/120W LED Round High Bay, Selectable CCT 3000/3500/4000/5000/6500K, Selectable Lumens, 120-347V
Regular price
Price:
$206.34
Regular price
Price:
Sale price
$206.34
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT DESCRIPTION
Construction
Construction
- Diecast aluminum housing and heatsink for durability
- Polycarbonate lens seals LED for IP65 rating
- Impact protection rating IK08 Lens and IK08 Housing
- Long-life LED system with electronic driver for optimal performance
- Selectable power switch for 3 levels of lumen output per model
- Selectable color switch provides 3000, 3500, 4000, 5000, and 6500K CCT at CRI >82
- Multi-volt 120 through 347V operation
- 0-10V dimming, 10% standard
- 10ft (86") long power and dimming cords provided for easier installation
- Integral 6kV surge protection level per ANSI C82.77- 5-2015
- Operating temperature of -40°C to 50°C
- Default CCT/Lumen setting is 4000K and High Power
- Field adjustable distribution provides Narrow, Medium, or Wide distribution
- Default distribution is set at Wide distribution
- Accessory Refractors are not rated for high impact applications
- EasyMount allows for either hook or pipe (stem) installations
- EasyMount hook can flip up for fast retrofit installs. Safety latch included
- Standard 3/4" NPS thread included for pendant stem mount 3/4" threaded pipe, hook or ring provided by others
- Accessory Refractors are not rated for high impact applications
- cULus listed for wet location
- NEMA 4X, IP65 rated
- NSF/ANSI standard 2 - Light fixture for Splash Zone and Non-Food Zone rated luminaire models.
- IESNA LM-79 and LM-80 standards compliant
- Qualifies as State of California Title 24 nonresidential high efficiency luminaire
- FCC part 15 class A compliant
- DesignLights Consortium® Qualified and classified for DLC Premium, refer to www.designlights.org for details.
- Plug and play low-voltage sensor accessory available
- Sensor installs directly to integral fixture port
- PIR motion sensor with 0-10V control
- Wet location and IP65 rated
- Up to 50ft mounting height
- Sensor remote control must be ordered separately
- 120-347V universal input remote emergency driver accessory available
- Field installed EM driver wires directly to fixture
- 90-minute batteries provide constant power to the LED system
- Test switch/indicator button can be tested safely from the ground using remote control
- EM remote control included with accessory
- Accessory comes with grommets and mounting hardware, see EM driver spec sheet.
- White polyester powder coat finish painted after fabrication
- Five year limited warranty
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
