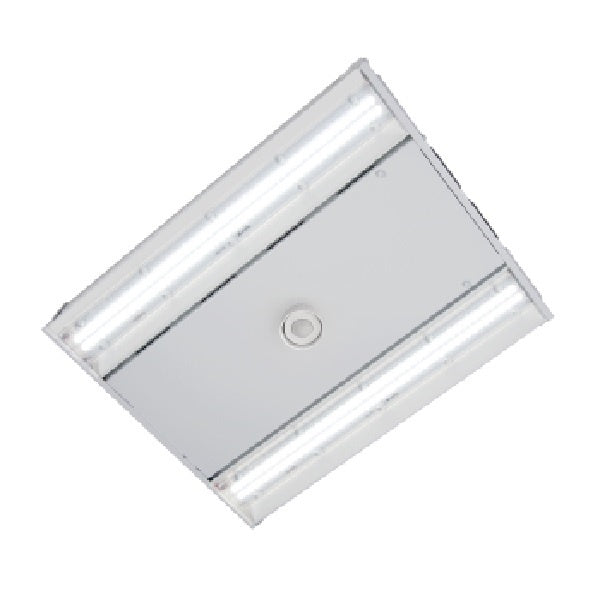

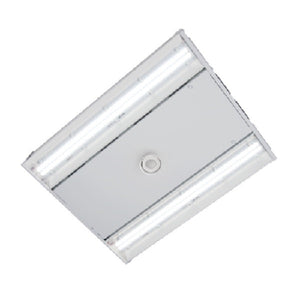

Metalux VHBLED-LD1-24-W-UNV-L850-CD1-U 213W Value High Bay, 24000 Lumens, Wide Distribution, 120-277V, 5000K, Dimmable
Metalux VHBLED-LD1-24-W-UNV-L850-CD1-U 213W Value High Bay, 24000 Lumens, Wide Distribution, 120-277V, 5000K, Dimmable
Regular price
Price:
$280.06
Regular price
Price:
Sale price
$280.06
Unit price
per
MODEL: Metalux-VHBLED-68
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Construction
Construction
- Durable CRS and extruded aluminum housing provides added protection for LED components and optimal performance

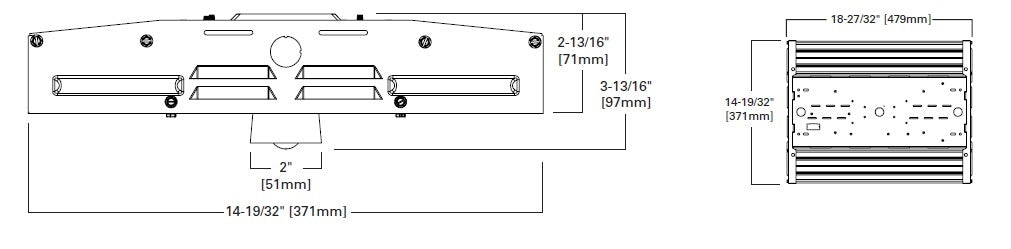

- Compact 15in x 18in low-profile design for a less obtrusive installation
- Long-life LED system coupled with electrical driver to deliver optimal performance
- LEDs available in 3500K, 4000K and 5000K with a CRI 80
- cULus listed
- Electronic drivers are available for 120-277V, 347V and 480V applications
- Standard 0-10V dimming
- Or, specify the Digital Addressable Lighting Interface (DALI) drivers for use with Fifth Light controls
- White enamel finish preceded by a multistage cleaning cycle, iron phosphate coating with rust inhibitor to protect against contaminants and oxidation
- Precision designed, high-impact polycarbonate optics deliver even illumination
- Narrow and wide distribution ensures superior performance to key areas within an application
- Integral Occupancy Sensor available and provides 1200 sq. ft. of coverage in a maximum mounting height of 30'
- The VHB LED series is ideally suited for suspension mounting with standard V Hangers (included) and optional chain set, or cable mounting
- Single-point mounting is also available with SPM adapter kit
- Luminaires are cULus listed for damp locations -40 degree C to 40 degree C ambient environments with 0-10V drivers (see chart)
- RoHS compliant, and LED modules comply with IESNA LM-79 and LM-80 standards
- DesignLights Consortium Qualified and classified for DLC Standard.
- Five-year warranty
