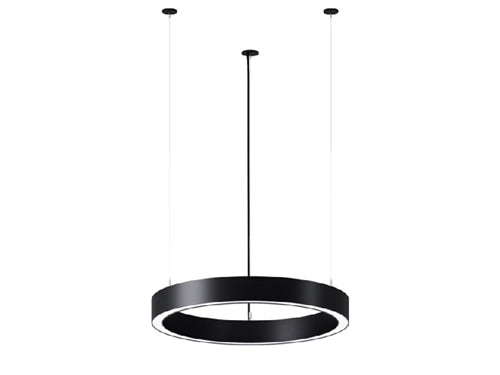

Home > Halo Lighting > Neo Ray DFN2DP-RG2F0060DS940-FLL-1DUDD-SC04T1B 2" Define Geo Ring, Direct Susp, 2' Ring Pattern, 6000 Lumens, 4000K, 90 CRI, Frosted Lens, Single Circuit, 120-277V, 0-10V, Silver Body, 4' Air Craft Cable Collector, 15/16in T-Grid, Black
Neo Ray DFN2DP-RG2F0060DS940-FLL-1DUDD-SC04T1B 2" Define Geo Ring, Direct Susp, 2' Ring Pattern, 6000 Lumens, 4000K, 90 CRI, Frosted Lens, Single Circuit, 120-277V, 0-10V, Silver Body, 4' Air Craft Cable Collector, 15/16in T-Grid, Black
Neo Ray DFN2DP-RG2F0060DS940-FLL-1DUDD-SC04T1B 2" Define Geo Ring, Direct Susp, 2' Ring Pattern, 6000 Lumens, 4000K, 90 CRI, Frosted Lens, Single Circuit, 120-277V, 0-10V, Silver Body, 4' Air Craft Cable Collector, 15/16in T-Grid, Black
Regular price
Price:
$1,856.25
Regular price
Price:
Sale price
$1,856.25
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Extruded 6063 Aluminum welded to 5052 aluminum brace
- Single piece Polycarbonate substrate lensing for down-light
- Driver accessible from above. Removable 22 gauge cold rolled steel top trays for up-light

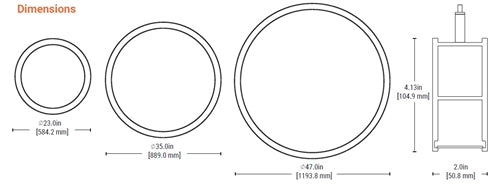

- Available in 2ft, 3ft, and 4ft
- Electrostatically applied polyester powder coat paint
- White, silver, and black finishes are standard.
- RAL custom colors are available
- FLL: Frosted lens (Diffuse) with lambertian distribution
- OOB: 96° peak intensity beam spread and excellent color over angle uniformity
- Available in 2700K, 3000K, 3500K, 4000K
- CRI ≥90CRI
- Refer to the lumen adjustment factor tables
- Extrapolated LED lifetime per TM-21:
- Greater than L90 at 44,000 hrs
- L70 exceeding 102,000 hrs
- Available in 120-277V
- 347V available with Standard 0-10V (DD) Controls option only with remote transformer
- Minimum suspension height from ceiling to top of fixture is 5"
- Recommended 18"+ for optimal ceiling uniformity with Indirect Batwing Optic
- Adjustable aircraft cables for balancing
- Refer to installation instructions for various ceiling interface details
- 0-10V dimming to 1% standard
- WaveLinx sensor compatible for IoT capability
- UL 924 emergency/generator transfer options available
-
Max weight:
- 2ft: 17 pounds
- 3ft: 23 pounds
- 4ft: 30 pounds
- UL listed for damp locations
- Tested to IESNA LM-79 and LM-80
- Stated life per TM21 standards
- Can be used for State of California Title 24 high efficacy luminaire
Warranty
• Five year warranty standard
