NeoRay S122DS-C485D930JB-4F0-1-UDD-A-W 2" LED Surface Direct, Core, 485 Lms/ft, 90 CRI, 3000K, Gypsum Board, Junction Box, 4' Length, 12 Ft Section, Single Circuit, 120-277V, 0-10V Dim to 10%, Asymmetric Diffuser, White

NeoRay S122DS-C485D930JB-4F0-1-UDD-A-W 2" LED Surface Direct, Core, 485 Lms/ft, 90 CRI, 3000K, Gypsum Board, Junction Box, 4' Length, 12 Ft Section, Single Circuit, 120-277V, 0-10V Dim to 10%, Asymmetric Diffuser, White

Price: $572.55
Price: $572.55

MODEL: NeoRay-S122DS-1551
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY DESCRIPTIONS
Construction

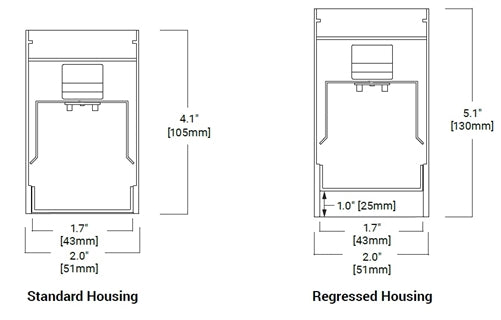

  • Available in Flush and Regressed Housing
  • Precision cut housing extruded from 6063 aluminum
  • Precision cut & welded end-caps ensure a robust and clean construction
  • Nominal 2′ -12′ illuminated sections used in individual fixtures and 2′-8′ illuminated sections used in continuous runs
Finish
  • Electrostatically applied polyester powder coat paint
LED Module
  • Modular LED tray assembly comprising reflector and light engine with quick disconnect wire-harness for ease of installation and maintenance over the life of the luminaire
Light Engine
  • Offered with two next generation Neo-Ray light engines delivering industry leading efficacy and long-life
  • LED’s are available in 2700K, 3000K, 3500K, 4000K or 5000K
  • CRI options of either ≥80CRI or ≥90CRI (Lumen output will be affected - please refer to the lumen adjustment factor table)
LED Drivers
  • LED system coupled with electrical driver
  • Traditional electronic drivers are available for 120-277V and 347V applications
Controls and Integrated Sensors
  • Equipped standard with a 0-10V continuous dimming driver. Compatible with most standard dimming devices
  • Additional control types are available (DALI & Lutron) at an additional cost
  • WaveLinx and Enlighted wireless sensors as well as stand-alone sensors available
Mounting
  • Surface
Lengths
  • Available in any length (2ft min) with a resolution of 1 foot. Max section length of 12ft (8ft max used on continuous runs and available for individual fixtures). Refer to page X, table Y for available BioUp lengths and light levels.
  • Additional fixture lengths are available please consult factory. All lengths are nominal and do not include end caps.
Corners and Transition Pieces
  • Corners and other transition pieces are fully luminous
  • Constructed using precision mitered housing and lens components
  • Extrusions are welded to ensure a precise and robust assembly
  • Standard 90° horizontal corners as well as custom corners are available
  • Consult online linear configurator or the factory for precise corner locations and for ordering
  • Alternative transition pieces such as T's, Y's, X's, etc. are also available Ø
Direct Snap-In lensing Options
  • Satin Flush - Flush, high diffusion glare-free lens
  • Satin Drop - 1″ Drop, high diffusion glare-free lens
  • Asymmetric - Flush, low-glare Asymmetric lens
  • Flush options ship with our patent-pending underlens solution, the proud lens ships with an injection molded end cap to eliminate light leak
Reflectors
  • Precision formed cold-rolled steel reflectors with high reflectivity
  • Ultra high reflectivity used with High Performance light engine
Lumen Maintenance
  • 90% (L90) of initial light output at 61,000+ hrs
  • 70% (L70) of initial light output at 237,000+ hrs
  • Derived from TM-21 standard @25°C for worst case operating conditions
Custom Lumen Output
  • Custom lumen output expressed option in Lumens per foot (e.g. -725D for 725 Lms/ft down). Refer to additional detail on page 5.
Electrical
  • Dimming provided as standard
  • Dimming wires capped with wire-nuts for nondimming applications
  • Optional battery backup options provided
  • Default battery location is internal to fixture
  • Default emergency section is 4ft in length and located at the beginning of the fixture unless designated elsewhere
  • Estimated lumen output = battery wattage * min efficacy (see performance table)
  • The EPC option will bypass local controls and dimming upon loss of normal power. This option is required when the fixture has both integrated sensors and emergency circuiting
Integrated Sensors
  • Please reference page 6 for details
Weight
  • 3.0 lbs per foot
Approvals
  • cULus - listed for damp locations
  • Meets NYC requirements
  • Meets CCEC requirements
  • Tested to IESNA LM-79 and LM-80
  • Can be used for State of California Title 24 high efficacy luminaire
  • DesignLights Consortium® Qualified and classified for DLC Standard, refer to www.designlights.org for details and listed configurations.
Warranty
  • Five year warranty standard.
