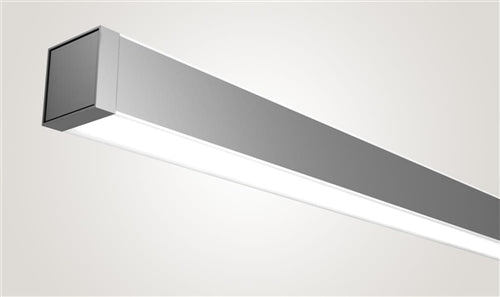

Peerless SQM4 LSL 16FT MSL8 80CRI 40K I500LMF 800LMF DARK ZT 277 2EC SCT F1/240A C032 DU BLK Linear LED 16ft, 8' Section, 80 CRI, 4000K, 500 Indirect LED Output, 800 Direct LED Output, Dim to <1%, 0-10V, 277V, Gloss White with Options
Peerless SQM4 LSL 16FT MSL8 80CRI 40K I500LMF 800LMF DARK ZT 277 2EC SCT F1/240A C032 DU BLK Linear LED 16ft, 8' Section, 80 CRI, 4000K, 500 Indirect LED Output, 800 Direct LED Output, Dim to <1%, 0-10V, 277V, Gloss White with Options
Regular price
Price:
$5,172.98
Regular price
Price:
Sale price
$5,172.98
Unit price
per
MODEL: Peerless-SQM4-110455
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Housing
Housing
Extruded aluminum housing is 3.5” square.
End Caps
Extruded aluminum end caps are mechanically attached with no exposed fasteners. Flat end caps standard. For sculptured end caps, choose option SCEP.
Color
Color for housing and end caps is gloss white, black, painted aluminum or anodized aluminum. Consult factory for custom colors.

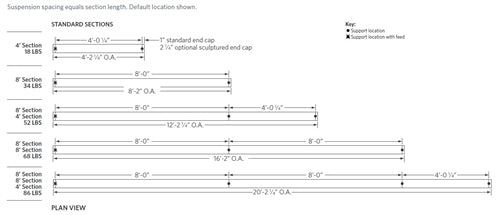

Luminaire Length
4’ and 8’ lengths in a single section for exact suspension spacing of 4’ and 8’. For total length, add 1” for each standard end cap and 2 1/4” for each sculptured end cap. Longer rows are comprised of starter, joiner and end sections.
Source
Four LED lumen packages and three available color temperature options (3000K, 3500K and 4000K) — all within 2.5 MacAdam ellipses.
Optics
Softshine optical system consists of injectionmolded primary optics, co-extruded acrylic lenses and metal reflectors. Lenses connect end to end to form a continuous line of light.
Dimming Driver
eldoLED driver provides "natural dimming" with smooth, continuous and flicker-free operation to 0.1% dim levels. Acuity luminaires incorporating eldoLED LED drivers perform within the recommended operating areas for flicker as a function of frequency and modulation (%) outlined in IEEE Standard 1789-2015 (IEEE Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers), in typical operating conditions at representative dimming levels. Syncing for controls: 2mA max.
THD: < 20%. Insignificant inrush current at 120 and 277VAC. FCC Class A and B tested for EMI and RFI.
When Control Input of 0-10V is specified driver will be set for linear dimming curve,If NLIGHT is specified driver will be set for logarithmic dimming curve
Controls and System Networking Options
For wired networking via Cat-5e, choose an integrated nLight module. For daylight dimming and/or dual technology occupancy detection, see Integrated Sensor Layout Page for more details.
Electrical
LED light engine -- consisting of modular LED boards and 0-10V dimming driver -- is rated for 60,000 hours (L80) at 25° C ambient temperature. Specify 120V or 277V. Pre-wired with 16AWG fixture wire.
For special circuiting or wire gauge, consult factory.
Plug-in electrical connectors included.
Environment
Suitable for damp location.
Validation
CSA/CUS listed. CSA tested to UL 1598 standards. LM-79 tested. Individual sections meet FCC Part 15 requirements.
Packaging
100% post-consumer recycled cardboard box and inserts. Biodegradable protective luminaire bag.
Recycled kraft paper tape.
Buy American Act
This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
Warranty
5-year limited warranty
End Caps
Extruded aluminum end caps are mechanically attached with no exposed fasteners. Flat end caps standard. For sculptured end caps, choose option SCEP.
Color
Color for housing and end caps is gloss white, black, painted aluminum or anodized aluminum. Consult factory for custom colors.
Luminaire Length
4’ and 8’ lengths in a single section for exact suspension spacing of 4’ and 8’. For total length, add 1” for each standard end cap and 2 1/4” for each sculptured end cap. Longer rows are comprised of starter, joiner and end sections.
Source
Four LED lumen packages and three available color temperature options (3000K, 3500K and 4000K) — all within 2.5 MacAdam ellipses.
Optics
Softshine optical system consists of injectionmolded primary optics, co-extruded acrylic lenses and metal reflectors. Lenses connect end to end to form a continuous line of light.
Dimming Driver
eldoLED driver provides "natural dimming" with smooth, continuous and flicker-free operation to 0.1% dim levels. Acuity luminaires incorporating eldoLED LED drivers perform within the recommended operating areas for flicker as a function of frequency and modulation (%) outlined in IEEE Standard 1789-2015 (IEEE Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers), in typical operating conditions at representative dimming levels. Syncing for controls: 2mA max.
THD: < 20%. Insignificant inrush current at 120 and 277VAC. FCC Class A and B tested for EMI and RFI.
When Control Input of 0-10V is specified driver will be set for linear dimming curve,If NLIGHT is specified driver will be set for logarithmic dimming curve
Controls and System Networking Options
For wired networking via Cat-5e, choose an integrated nLight module. For daylight dimming and/or dual technology occupancy detection, see Integrated Sensor Layout Page for more details.
Electrical
LED light engine -- consisting of modular LED boards and 0-10V dimming driver -- is rated for 60,000 hours (L80) at 25° C ambient temperature. Specify 120V or 277V. Pre-wired with 16AWG fixture wire.
For special circuiting or wire gauge, consult factory.
Plug-in electrical connectors included.
Environment
Suitable for damp location.
Validation
CSA/CUS listed. CSA tested to UL 1598 standards. LM-79 tested. Individual sections meet FCC Part 15 requirements.
Packaging
100% post-consumer recycled cardboard box and inserts. Biodegradable protective luminaire bag.
Recycled kraft paper tape.
Buy American Act
This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
Warranty
5-year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
