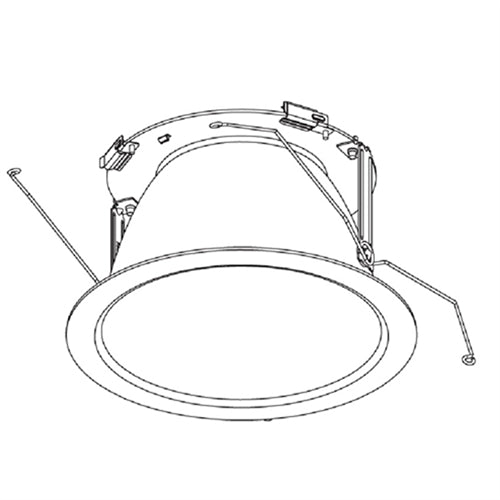

• Portfolio 6LBM0LI 6" LED Recessed Trim, 50 Degrees Cutoff, Medium Beam Reflector, Spun Aluminum, White Polymer Trim Ring, Specular Clear
1 1

Portfolio 6LBM0LI 6" LED Recessed Trim, 50 Degrees Cutoff, Medium Beam Reflector, Spun Aluminum, White Polymer Trim Ring, Specular Clear

Portfolio 6LBM0LI 6" LED Recessed Trim, 50 Degrees Cutoff, Medium Beam Reflector, Spun Aluminum, White Polymer Trim Ring, Specular Clear

Price: $73.67
Price: $73.67

MODEL: Portfolio-6LBM0LI

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Wall Wash Reflector
  • Open Wall Wash - wall wash reflector with gradient kicker offered in single, double and corner wall wash provides even vertical illumination with minimal source brightness.
  • Rotatable Lensed Wall Wash - Rotatable lensed wall wash reflector offered in single and double wall wash provides even vertical illumination with minimal source brightness.
Trim Retention
  • Two torsion springs hold reflector flange tightly to the finished ceiling surface

Code Compliance
  • Thermally protected
  • cULus Certified to UL 1598 / C22.2 No. 250.0 suitable for wet locations with downlight; damp location with wall wash and hyperbolic with covered ceiling
  • IP66 rated when used with IP66 gasket kit accessory
  • Use IP66 gasket with non conductive reflector for sauna or steam room applications up to 2000 lumens and 40°C.
  • Optional City of Chicago environmental air (CCEA) marking for plenum applications
  • FCC CFR Title 47 Part 15 Class B at 120VAC and Class A at 277VAC
  • Insulated ceiling (IC) rated up to 1,500 lumens (90 and 97CRI). All others are non-IC rated (insulation must be kept 3" from top and sides of housing).
  • Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2016 JA8 High Efficacy Lighting"
  • RoHS compliant*
  • Photometric testing completed in accordance with IES LM-79
  • LED life testing completed in accordance with IES LM-80-08 and TM-21-11 standards
  • See table on page 3 for marked spacing requirements

ORDERING INFORMATION
