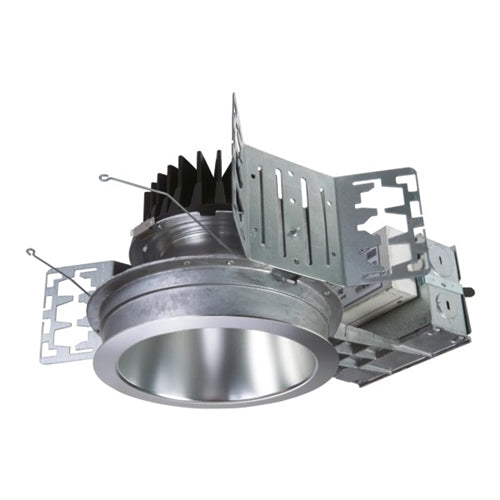

Portfolio LD6C10D010EM14 6" LED New Construction Downlight, 1000 Lumens, 0-10V Dimming, 1% to 100%, 120V-277V, 14W Emergency Module with Remote Test Switch
Portfolio LD6C10D010EM14 6" LED New Construction Downlight, 1000 Lumens, 0-10V Dimming, 1% to 100%, 120V-277V, 14W Emergency Module with Remote Test Switch
Regular price
Price:
$416.00
Regular price
Price:
Sale price
$416.00
Unit price
per
MODEL: Portfolio-LD6C10D010EM14
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY DESCRIPTION
Lower Shielding Reflector
Lower Shielding Reflector
- Painted die-cast aluminum or spun aluminum lower reflector with lensed upper optical chamber provides superior lumen output with minimal source brightness
- Spun reflectors are available in all Portfolio anodized finishes
- Hyperbolic reflector provides minimal aperture brightness and glare.
- Available with non-conductive polymer reflector up to 2000 lumens
- Plaster lathing ring, knife edge and millwork ring accessory for flush reflector transition
Universal Mounting Bracket
- Accepts 1/2” Electric Metallic Tube (EMT), C-channel and bar hangers
- Adjusts 5” vertically from above and below the ceiling
Junction box
- Four 1/2” and two 3/4” trade size pry outs positioned to allow straight conduit runs
- Lever connectors for simple push in wiring
- Listed for (4) #12 AWG (two in, two out) 90°C conductors and feed thru branch wiring for type IC and Plug in drivers for 120/277V only. For all other cases (8) #12 AWG (four in, four out) 90°C conductors and feed thru branch wiring for 120/277V only
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
