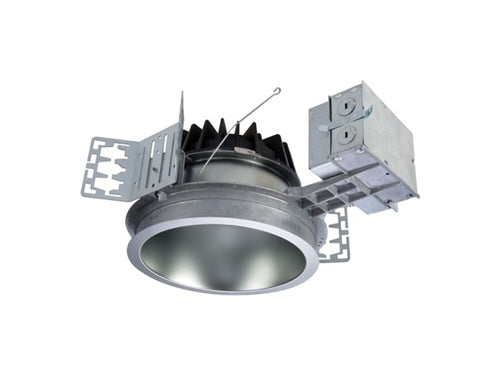

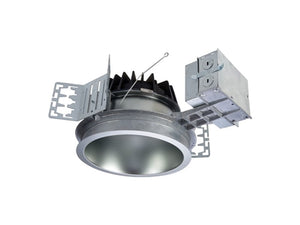

Portfolio LD8B902D010 8" Narrow, Medium, or Wide New Construction LED Housing, 9000 Lumens, 0-10V, 277V Dimming, 1% to 100%

Price: $320.43

MODEL: Portfolio-LD8B902D010

Usually Ships in 4-6 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT FAMILY SPECIFICATIONS
Universal Mounting Bracket

Junction Box

Four 1/2" and two 3/4" trade size pry outs positioned to allow straight conduit runs
Listed for eight #12 AWG (four in, four out) 90°C conductors and feed-through branch wiring

Thermal

Aluminum heat sink conducts heat away from the LED module for improved performance and longer life

LED System

Contains a plurality of high brightness white LED’s combined with a high reflectance upper reflector and transitional lens producing even distribution with no pixilation
Lumen output shall not decrease by more than 10% over the minimum life of 55,000 hours (L90 > 55,000 hours)
Color variation within 2-step MacAdam ellipses
Flexible disconnect allows for tool-less replacement of LED engine from below ceiling
Available in 2700K, 3000K, 3500K, 4000K and 5000K correlated color temperature (CCT)
Available in 80, 90 or 97 color rendering index (CRI) VividTune Color Tuning Solutions
D2W -- Dim-to-Warm shifts CCT from 3000K to 1850K as fixture dims, mimicking halogen sources
W2N -- Tunable white CCT range from 2700K to 6500K or 2000K to 5000K; 90 CRI

Driver

Combination 0-10V/trailing edge driver provides flicker free dimming from 100% to 10%
Optional 1% 0-10V, Fifth Light, DMX or Lutron Ecosystem
Driver can be serviced from above or through the aperture
1,000-7,000 lumens utilize one driver; 8,000-12,000 lumens utilize two drivers; 15,000-20,000 lumens utilize three drivers; reference ordering information for other variations
Distributed low voltage power system combines power, lighting, and controls with ease of installation.
