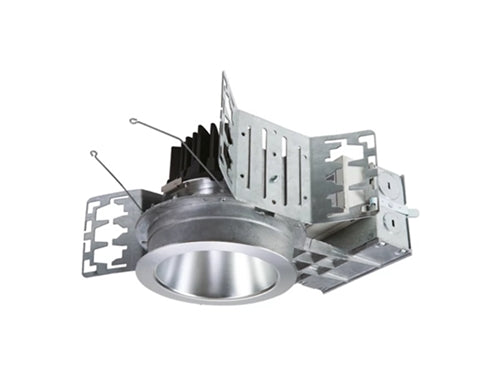

Portfolio LDRT4C20D010 4" Retrofit Round LED Downlight, 2000 Lumens, 0-10V 1% Dimming 500-7000 Lumens with Integral Driver

Portfolio LDRT4C20D010 4" Retrofit Round LED Downlight, 2000 Lumens, 0-10V 1% Dimming 500-7000 Lumens with Integral Driver

Price: $161.54
Price: $161.54

MODEL: Portfolio-LDRT4C20D010
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Lower Shielding Reflector
  • Painted die-cast aluminum or spun aluminum lower reflector with lensed upper optical chamber provides superior lumen output with minimal source brightness
  • Spun reflectors are available in all Portfolio anodized finishes
  • Hyperbolic reflector provides minimal aperture brightness and glare.
  • Available with non-conductive polymer reflector up to 2000 lumens
  • Decorative frosted acrylic ring provides a light glow in the ceiling
Wall Wash Reflector
  • Open Wall Wash - wall wash reflector with gradient kicker offered in single, double and corner wall wash provides even vertical illumination with minimal source brightness.
  • Rotatable Lensed Wall Wash - Rotatable Lensed wall wash reflector offered in single and double wall wash provides even vertical illumination with minimal source brightness.
Trim Retention
  • Two torsion springs hold reflector flange tightly to the finished ceiling surface
Plaster Ring
  • Galvanized steel ring installs with 2 mouse trap springs for secure installation and accommodates up to 2 inch ceiling thickness.
  • Retrofit - Converts existing HID, incandescent or compact fluorescent downlights to energy saving LED.
  • Simple below ceiling installation without removing the existing fixture. Pre-wired flexible conduit with snap in connector installs into 1/2" knockout on the existing junction box.
  • LDRT67B includes oversize adapter ring for larger openings
Thermal
  • Aluminum heat sink conducts heat away from the LED module for improved performance and longer life
LED System
  • Contains a plurality of high brightness white LED’s combined with a high reflectance upper reflector and convex transitional lens producing even distribution without pixilation
  • Auto resetting, thermally protected, LED’s are turned off when safe operating temperatures are exceeded
  • Quick disconnect allows for tool-less replacement of LED engine from below ceiling
  • 90 and 97 CRI
  • 90 & 97CRI: L78 55,000 hours for 1000-2000 lumens, L90 55,000 for all other lumen output
  • Color variation within 2-step MacAdam ellipses
  • Available in 2400K, 2700K, 3000K, 3500K, 4000K and 5000K correlated color temperature (CCT)
Vividtune and High CRI
  • 98 CRI and W2N: L70 55,000 hours
  • D2W - dim-to-warm shifts CCT from 3000K to 1850K as fixture dims mimicking halogen sources.
  • W2N - Tunable white CCT range 2700K to 6500K or 2000K to 5000K, 90 CRI. Standard
  • 98 CRI With a full-spectrum approach using broadblue chip technology and special phosphor blends, Thrive is able to closely match the spectrum of the sun across all color temperatures. Benefits of the natural spectrum of the sun using Thrive include superior accurate color rendering, reduced eye strain, and a higher sense of emotional well-being.
  • See dedicated specification sheet for more details.
Driver
  • Standard 120-277V 0-10V dimming driver provides flicker free dimming from 100% to 1%
  • Optional 120V leading edge/0-10V, <1% 0-10V, Fifth Light, DMX or Lutron® Ecosystem
  • Driver can be serviced from above or through the aperture
  • Distributed low voltage power system combines power, lighting, and controls with ease of installation.
  • Optional snap in driver for ease of maintenance.
Emergency Option
  • Provides 90 minutes of standby lighting, meeting most life safety codes for egress lighting
  • Available Self-Test with remote charge indicator and test switch
  • Emergency transfer device (ETRD) senses the loss of power regardless of local control settings allowing emergency power to the fixture.
  • UL 924 listed
  • EM14RSD with simplified battery replacement and self diagnostics
Connected Lighting System
Two WaveLinx connected solutions to choose from. Refer to WaveLinx system specifications and application guides for details.
WaveLinx PRO Tilemount Sensor Kit
  • WaveLinx PRO WPST tilemount sensor kit offers daylight dimming, PIR motion sensing, scene and zone configuration, automatic commissioning; and optional RLTS - Real Time Location Services available.
WaveLinx PRO Wireless Node
  • WaveLinx PRO WPN wireless node provides luminaire-level control with scene and zone configuration without an integrated sensor; Connects wirelessly with daylight dimming sensor and PIR motion sensor if desired. Use with 0-10V driver only. Note: Not compatible with 347V or Chicago plenum.
WaveLinx LITE Tilemount Sensor Kit
  • WaveLinx LITE WLST tilemount sensor kit offers daylight dimming and PIR motion sensing, scene and grouping configuration.
WaveLinx LITE Wireless Node
  • WaveLinx LITE WLN wireless node provides luminaire level control with scene and zone configuration without an integrated sensor; Connects wirelessly with daylight dimming sensor and PIR motion sensor if desired. Use with 0-10V driver only. Note: Not compatible with 347V or Chicago plenum.
WaveLinx Tilemount Kits Application
  • The WPST and WLST tilemount kits include a control module mounted on the luminaire junction box via 1/2" knock-out, and a tilemount sensor on 54-inch whip; for ceiling installation by direct-mount spring clips or via mounting bracket in octagon ceiling boxes.
  • The WPST and WLST tilemount kits may be ordered as factory installed on the luminaire, or ordered separately as a field installed accessory kit.
  • Note: WaveLinx PRO devices are only compatible with the WaveLinx PRO system.
  • Note: WaveLinx LITE devices are only compatible with the WaveLinx LITE system.
Code Compliance
  • Thermally protected
  • cULus Certified to UL 1598 / C22.2 No. 250.0 suitable for wet locations with downlight and lens wall wash; damp location with open wall wash with covered ceiling
  • IP66 rated when used with IP66 gasket kit accessory
  • Use IP66 gasket with non conductive reflector for steam room applications up to 2000 lumens and 40°C.
  • Optional City of Chicago environmental air (CCEA) marking for plenum applications
  • FCC CFR Title 47 Part 15 Class B at 120VAC and Class A at 277VAC
  • Insulated ceiling (IC) rated up to 1,500 lumens (90 and 97CRI). All others are non-IC rated (insulation must be kept 3" from top and sides of housing).
  • Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2016 JA8 High Efficacy Lighting*
  • RoHS compliant*
  • Photometric testing completed in accordance with IES LM-79
  • LED life testing completed in accordance with IES LM-80-08 and TM-21-11 standards
  • See table on page 3 for marked spacing requirements
Warranty
