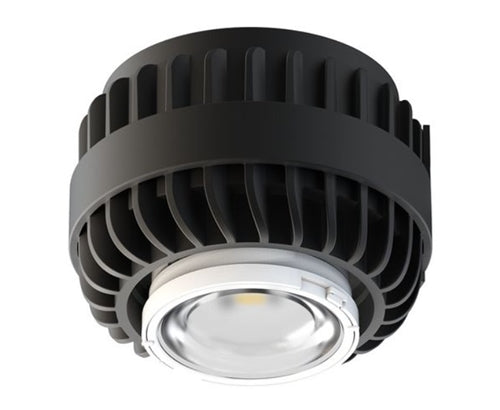

Prescolite LBRP-M-LSSLCS9 Round Direct Install LED Downlight Module, 800/1200/1600 lumens 120V, Switchable CCT 2700K/3000K/3500K/4000K/5000K

Price: $86.50

MODEL: Prescolite-LBRP-M-LSSLCS9

Usually Ships in 4-6 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION

Canless direct install New Construction or Remodel, Non-IC. Select IC models available.
Optional Wide Beam Accessory converts from standard optical assembly to a 55° through 75deg dial-in beam angle, ideal for general illumination applications
Integral wiring compartment (standard) can eliminate the need for an additional J-Box
Retention tether provided to secure to building structure if needed
Fixture modules can be used with interchangeable trims in 3 apertures

OPTICS

High quality spun aluminum reflector with 55 degrees cutoff provides excellent lumen delivery while reducing glare
Optional White Cone and Flange or Diffuse Anodized Cone and White flange available
Optical assembly standard with dial-in beam angle from 24 degrees to 45 degrees with indicators
Optional Wide Beam Accessory kit ideal for general illumination applications with up to 1.06 Spacing Criteria
Polycarbonate lensed optic, suitable for wet location, covered ceiling applications

ELECTRICAL

LED array with 3 SDCM color consistency
Long LED life: Maintains 70% of lumen output at >50,000 hours of operation (L70 at >50,000hr TM-21)
Switchable Lumen, 3 settings per module: SL (800/1200/1600 lm); ML (1600/1800/2100 lm); HL (3000/4000/5000 lm)
High efficiency integral driver with universal 120-277V, 50/60Hz
Flicker-free 0-10V Dim to Off
See Additional Information section for a list of recommended dimmers
Meets Class A (<24dba) noise rating
FCC CFR 47 Part 15 Class B
â‰¥ 0.9 Power Factor, <20% THD
Optional 7W 90-minute Emergency Battery Backup with remote test switch

CERTIFICATIONS

WARRANTY
