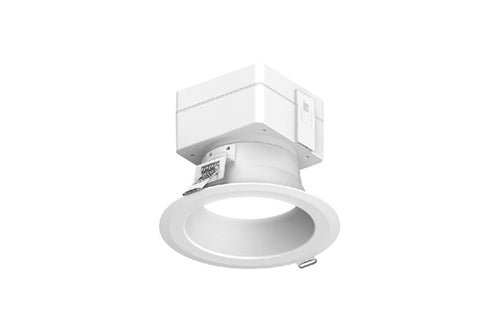

Home > Lithonia Lighting > Prescolite LBRST-4RD-M-LSSL-CS9-WH-34 4" Round LED Downlight, 120-277V, Tri-Dim 0-10V to 1% and ELV/Triac Phase to 5%, Switchable 750/1100/1500 Lumens, Switchable CCT 2700/3000/3500/4000/5000K, 90 CRI, White

  • Prescolite LBRST-4RD-M-LSSL-CS9-WH-34 4" Round LED Downlight, 120-277V, Tri-Dim 0-10V to 1% and ELV/Triac Phase to 5%, Switchable 750/1100/1500 Lumens, Switchable CCT 2700/3000/3500/4000/5000K, 90 CRI, White
1 1

Prescolite LBRST-4RD-M-LSSL-CS9-WH-34 4" Round LED Downlight, 120-277V, Tri-Dim 0-10V to 1% and ELV/Triac Phase to 5%, Switchable 750/1100/1500 Lumens, Switchable CCT 2700/3000/3500/4000/5000K, 90 CRI, White

Prescolite LBRST-4RD-M-LSSL-CS9-WH-34 4" Round LED Downlight, 120-277V, Tri-Dim 0-10V to 1% and ELV/Triac Phase to 5%, Switchable 750/1100/1500 Lumens, Switchable CCT 2700/3000/3500/4000/5000K, 90 CRI, White

Price: $61.79
Price: $61.79

MODEL: Prescolite-LBRST-364
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
  • Canless New Construction, Remodel, or Retrofit, Non-IC. Select IC models available.
  • Single piece luminaire allowing for quick, simple and tool-less install
  • Color trim accessories available in White, Black and Silver offer dead front properties
OPTICS
  • Polycarbonate lensed optic, suitable for wet location, covered ceiling applications
ELECTRICAL
  • LED array with 3 SDCM color consistency
  • Maintains 80% of lumen output at >54,000 hours of operation (L80 at 54,000hrs TM-21)
  • Switchable CCT (2700K, 3000K, 3500K, 4000K, 5000K)
  • 90 CRI+ with R9 >50
  • Switchable Lumen: 4" (750/1100/1500lm); 6" (1100/1500/2500lm); 8" (3000/4000/4600lm)
  • High efficiency integral driver with universal 120-277V, 50/60Hz
  • Tri-Dimming: 0–10V to 1% and ELV/Triac Phase dimming to 5%
  • See Additional Information section for a list of recommended dimmers
  • Meets Class A (<24dba) noise rating
  • FCC CFR 47 Part 15 Class B
  • ≥ 0.9 Power Factor, <20% THD
INSTALLATION
  • Robust trim mounting springs hold fixture firmly against ceiling surface
  • Accommodates ceiling thicknesses up to 1" (for 6" and 8"); 3/4" (for 4")
  • Fixture installs below the ceiling without a housing
  • Optional new construction mounting pans with bar hangers available
  • Field select CCT at installation with an integral switch on fixture module
  • Field select lumen output at installation with an integral switch of fixture module
CERTIFICATIONS
  • cETLus listed to UL1598
  • 4" models: Can be used in direct contact with insulation
  • Certified Air Tight per ASTM E283
  • 4" models: Meet CA Title 24 High Efficacy (JA8-2019) requirements
  • Suitable for wet locations, covered ceilings
  • Emergency battery packs are California Energy Commission (CEC) Title 20 Compliant
WARRANTY
  • • 5 year warranty
