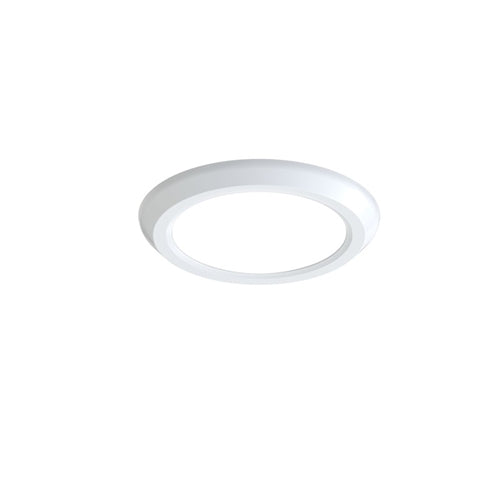

Prescolite LBSD-6RD-CS9-WH 6" Disk Surface Mount Round LED Downlight, J-Box Mount, 1000 Lumens, 90 CRI, Switchable CCT 2700K/3000K/3500K/4000K, 120-277V with Phase Dimming, White

Prescolite LBSD-6RD-CS9-WH 6" Disk Surface Mount Round LED Downlight, J-Box Mount, 1000 Lumens, 90 CRI, Switchable CCT 2700K/3000K/3500K/4000K, 120-277V with Phase Dimming, White

Price: $8.50
Price: $8.50

MODEL: Prescolite-LBSD-6RD-302
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
  • Durable aluminum low profile trim
  • Suitable for New Construction or Remodel, IC or Non-IC applications
  • Can be directly mounted to most standard J-Boxes, ideal for areas with limited plenum space
  • Optional accessory kits available to retrofit into 4”, 5” or 6” recessed downlight housings
OPTICS
  • Reliable back-Lit LED technology
  • Durable, polycarbonate twist-on lens
  • Light distribution is uniform and visually comfortable
ELECTRICAL
  • LED array with 3 SDCM color consistency
  • Long LED life: Maintains 70% of lumen output at 54,000 hours of operation, L70 at >54,000 hours (TM-21)
  • Switchable CCT (2700K/3000K/3500K/4000K)
  • 90+ CRI with R9 >50
  • High efficiency integral driver with universal 120V-277V, 50/60Hz
  • All models have flicker-free dimming with 120V Triac or ELV phase cut to 5%
  • See Additional Information section for a list of recommended dimmers
  • EMI: Meets Class A (<24dba) noise rating, FCC CFR 47 Part 15 Class B
  • ≥0.9 Power Factor, <20% THD
INSTALLATION
  • Installs directly to most common 3-1/2” or 4” octagonal and round junction boxes with a minimum1-1/2” depth including fire rated (by others)
  • Mount with screws through pan keyholes
  • Twist-lock lens is easily secured with no visible hardware
  • CCT can be selected at installation with integral switch on the driver
CERTIFICATIONS
  • cETLus listed to UL1598
  • Can be used in direct contact with insulation (IC Rated)
  • Suitable for wet locations, covered ceiling
  • Suitable for use in clothes closets when installed in accordance to N.E.C. 410.16
  • Meets CA Title 24 High Efficacy (JA8-2019) requirements
WARRANTY
  • 5 year warranty
