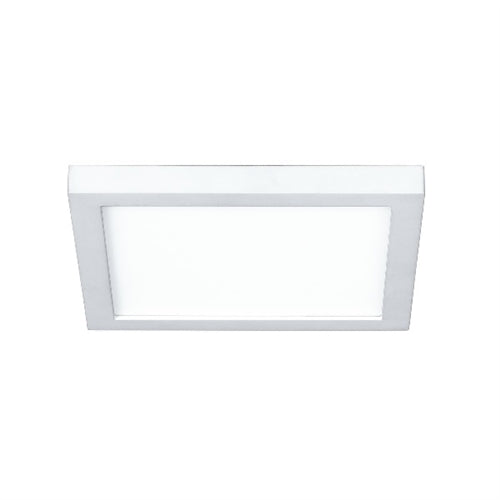

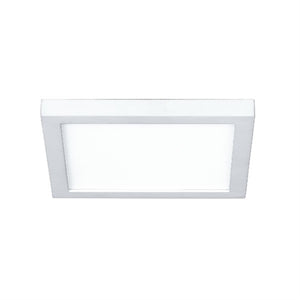

Prescolite LBSES-6SQD-CS9-WH 6 inch Square LED Surface Mount Downlight Module, 1100 Lumens, Wet Location, 120V, Switchable Color Temperature, 90 CRI, White Color
Prescolite LBSES-6SQD-CS9-WH 6 inch Square LED Surface Mount Downlight Module, 1100 Lumens, Wet Location, 120V, Switchable Color Temperature, 90 CRI, White Color
Regular price
Price:
$45.00
Regular price
Price:
Sale price
$45.00
Unit price
per
MODEL: Prescolite-LBSES-6SQD-CS9-WH
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Durable cast aluminum low profile trim with 1/2" surface profile
- Suitable for New Construction or remodel, IC or Non-IC applications
- Eliminates the need for a recessed housing, ideal for areas with limited plenum space
- Optional non-conductive Decorative Color Trim accessories available in White, Black, Silver, and Brushed Oil Rubbed Bronze
- Utilizes the latest Edge-Lit LED technology
- Integral diffuse polycarbonate lens provides uniform light distribution
- Light distribution is free of distracting bright spots
- Visually comfortable with low glare
- Edge-Lit LED array with 3 SDCM color consistency
- Long LED life: Maintains 80% of lumen output at 54,000 hours of operation, L80 at >54,000 hours (TM-21)
- Switchable CCT (2700K/3000K/3500K/4000K)
- 90+ CRI with R9 >50
- High efficiency integral driver with universal 120V-277V, 50/60Hz
- All models have flicker-free dimming with 120-277V 0-10V Dim to Off or 120V Triac or ELV phase cut to 5%
- See Additional Information section for a list of recommended dimmers
- EMI: Meets Class A (<24dba) noise rating, FCC CFR 47 Part 15 Class B, ≥0.9 Power Factor, <20% THD
- Installs directly to most common 3-1/2" or 4" octagonal and round junction boxes with a minimum 1-1/2" depth including fire rated (by others)
- Metal plate mounts to the J-Box and accepts snap-in spring clips for a secure fit
- Switchable CCT models: Field select one of four CCTs at installation with an integral switch accessible on the back of the driver
CERTIFICATIONS
WARRANTY- cETLus listed to UL1598
- Can be used in direct contact with insulation (IC Rated)
- Suitable for wet locations, covered ceiling
- Suitable for use in clothes closets when installed in accordance to N.E.C. 410.16
- ENERGY STAR certified
- Meets CA Title 24 High Efficacy (JA8 2019) requirements
- 5 year warranty
