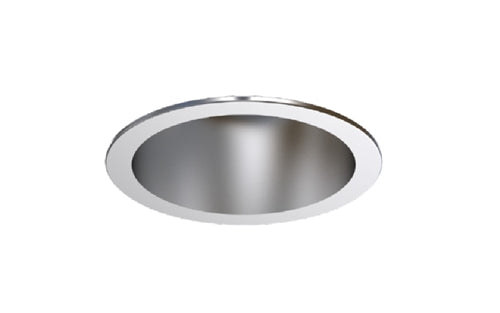

Prescolite LFR-6RDS-T-S 6" Round Shallow Downlight Trim, Specular Reflector

Prescolite LFR-6RDS-T-S 6" Round Shallow Downlight Trim, Specular Reflector

Price: $66.33
Price: $66.33

MODEL: Prescolite-LFR-6RDS-316
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
  • Standard Fixture Module designed for Non-IC, Direct Install construction
  • Optional Non-IC frame or IC housing available with pre-installed bar hangers
  • Die cast aluminum fixture module support ring with spring steel clips for secure mounting to ceiling
  • Driver J-Box can be installed and accessed from below the ceiling as direct install or easily snap on to optional housing frame/enclosure
  • Light Engine connections use plenum rated (CMP) cable
OPTICS
  • High purity spun aluminum reflector, self-flanged
  • 61° visual cutoff to source image and 45° cutoff to source
  • Specular or Semi-Specular anodized or White painted cone reflector finish/colors
  • Painted flange options in White or Black
ELECTRICAL
  • Chip-on-board LED with 2 SDCM
  • Multiple CCTs, 80+ or 90+ CRI
  • Long LED life: L90 at >50,000 hours (TM-21)
  • Universal voltage 120–277V driver, 347V optional
  • UL Class 2, inherent short circuit and overload protection
  • Flicker-free dimming options in a wide range of protocols from 1% to <0.1% performance
  • 0-10V, Phase (Forward/Reverse), DALI, DMX, and Lutron EcoSystem options
  • NX Lighting Controls provides options for standalone and networked functionality with wired or wireless connectivity for NX system deployments
  • Remote emergency battery option available
INSTALLATION
  • Accommodates ceiling thickness from 0.50" to 2.50"
  • Fixture Module including driver fully accessible from above or below the ceiling
  • 10L-15L Fixture Modules are inherently protected IC without the use of IC housing enclosure. (IC housing is still recommended when using loose-fill or spray foam insulation types.)
CERTIFICATIONS
  • cCSAus certified to UL 1598
  • For 30L: Marked spacing required 36" fixture center to center; 18" fixture center to building member; 0.5" above fixture
  • Suitable for damp locations
  • EMR: Certified under UL 924 standard for emergency lighting and power equipment
  • EMR: Emergency battery packs are California Energy Commission (CEC) Title 20 Compliant
  • Approved for 8 (4 in/4 out) No. 12AWG conductors rated for 90°C through wiring
WARRANTY
  • 5 year warranty
