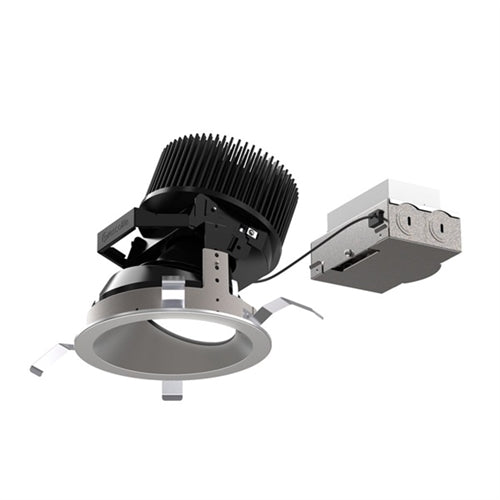

Home > Hubbell Lighting > Prescolite LFR-6RW-M-10L30K8-LWW-DM1 6" LED Round Lensed Wall Wash Downlight, 1000 Lumens, 3000K, 80 Cri, 0-10V Dimming to 1%
Prescolite LFR-6RW-M-10L30K8-LWW-DM1 6" LED Round Lensed Wall Wash Downlight, 1000 Lumens, 3000K, 80 Cri, 0-10V Dimming to 1%
Prescolite LFR-6RW-M-10L30K8-LWW-DM1 6" LED Round Lensed Wall Wash Downlight, 1000 Lumens, 3000K, 80 Cri, 0-10V Dimming to 1%
Regular price
Price:
$159.89
Regular price
Price:
Sale price
$159.89
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Standard Fixture Module designed for Non-IC, Direct Install construction
- Optional Non-IC frame or IC housing available with pre-installed bar hangers
- Die cast aluminum fixture module support ring with spring steel clips for secure mounting to ceiling
- Driver J-Box can be installed and accessed from below the ceiling as direct install or easily snap on to optional housing frame/enclosure
- Light Engine connections use plenum rated (CMP) cable
- Tempered Glass Lens standard
- Provides uniform light distribution down the wall
- High purity spun aluminum reflector, self-flanged
- Specular or Semi-Specular anodized or White painted cone reflector finish/colors
- Painted flange options in White or Black
ELECTRICAL
347V optional- Chip-on-board LED with 2 SDCM
- Multiple CCTs, 80+ or 90+ CRI
- Long LED life: L90 at >50,000 hours (TM-21)
- Universal voltage 120–277V driver,
- UL Class 2, inherent short circuit and overload protection
- Flicker-free dimming options in a wide range of protocols from 1% to <0.1% performance
- 0-10V, Phase (Forward/Reverse), DALI, DMX, and Lutron EcoSystem options
- NX Lighting Controls provides options for standalone and networked functionality with wired or wireless connectivity for NX system deployments
- Remote emergency battery option available
- Accommodates ceiling thickness from 0.50" to 1.25"
- Fixture Module including driver fully accessible from above or below the ceiling
- 10L-15L Fixture Modules are inherently protected IC without the use of IC housing enclosure. (IC housing is still recommended when using loose-fill or spray foam insulation types.)
CERTIFICATIONS
WARRANTY- cCSAus certified to UL 1598
- For ≥60L: Marked spacing required 36" fixture center to center; 18" fixture center to building member; 0.5" above fixture
- IP65 rated (room side) when properly installed per installation instructions
- Suitable for wet locations, covered ceiling
- EMR: Certified under UL 924 standard for emergency lighting and power equipment
- EMR: Emergency battery packs are California Energy Commission (CEC) Title 20 Compliant
- Approved for 8 (4 in/4 out) No. 12AWG conductors rated for 90°C through wiring
- 5 year warranty
downloads
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
