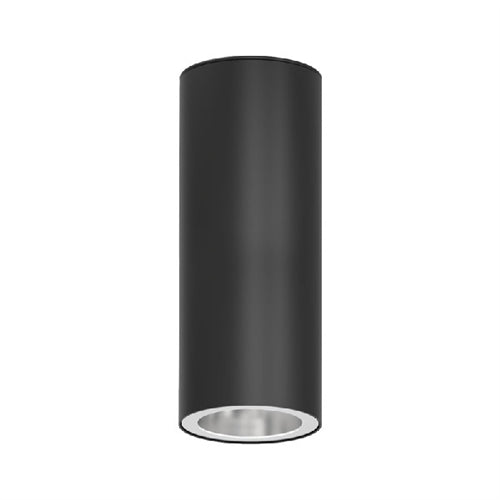

Prescolite LTC-4RD-S-06L40K8MD-DM1-SS-BA 4" Round Cylinder LED Downlight, Surface Mounting, Standard Canopy, 600 Luemsn, 4000K, 80 CRI, Medium Distribution, 0-10V Dimming to 1%, 120-277V, Semi-Specular Reflector, Brushed Aluminum
Prescolite LTC-4RD-S-06L40K8MD-DM1-SS-BA 4" Round Cylinder LED Downlight, Surface Mounting, Standard Canopy, 600 Luemsn, 4000K, 80 CRI, Medium Distribution, 0-10V Dimming to 1%, 120-277V, Semi-Specular Reflector, Brushed Aluminum
Regular price
Price:
$425.12
Regular price
Price:
Sale price
$425.12
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Seamless heavy gauge aluminum cylinder body with a clean appearance
- Available in Surface (S), Wall (W), Pendant (P), or Cord (CM) mounting types
- Canopy options include Conduit Canopy (CC), Power Canopy (PC), Power Conduit Canopy (PCC), or Recessed Mount Driver (RMD), (See Dimensions section for details)
- For S, P, or CM mounting with CC or PCC canopy options, use 4" octagonal junction box (by others)
- All Wall Mount: Die cast aluminum mounting arm allows direct mounting to standard 4" octagonal or square junction box
- Pendant Mount canopy options allow sloped ceiling up to 35° (5° for RMD)
- Select from 4 standard architectural painted finishes, Brushed Aluminum, or specified custom color
OPTICS
- Visually pleasing 50° cutoff to source and source image
- The light distribution is free of distracting bright spots or pixelation and the perimeter has a smooth transition
- Optical grade silicone lens integral to light engine
- High purity spun aluminum reflector, self-flanged
- Large selection of anodized finishes and colors
- Painted cones and flange options available
ELECTRICAL
- Chip-on-board (COB) LED with 2 SDCM
- Multiple CCTs, 80+ or 90+ CRI
- Long LED life: L90 at 55,000 (TM-21)
- Universal voltage 120V–277V driver, 347V optional UL Class 2, inherent short circuit and overload protection
- Flicker free 0–10V dimming with 1% or <1% performance
- DALI, DMX, and Lutron EcoSystem options
- NX Lighting Controls provides options for standalone and networked functionality with wired or wireless connectivity for NX system deployments
- Lutron Athena control options also available
INSTALLATION
- Light Engine/Trim assembly is mechanically secured with torsion springs for ease of installation
- A quick connect is provided for easy maintenance or upgrade
- Recessed Mount Driver (RMD) is accessible from above or below ceiling; assembly mounts with 1/4-20 threaded rod (by others) and requires 6" plenum clearance
- Conduit Canopy options (CC or PCC) allow field selectable conduit entry (up to 4@ 90°) (See Dimensions section)
- Conduit Canopies utilize a patent pending mounting yoke to secure cylinder to the ceiling surface
- Cord can be cut in the field to custom length
- Standard and Custom Pendant lengths available (specify when ordering)
CERTIFICATIONS
- cCSAus certified to UL 1598
- Wall Mount up to 30L (except CC and PCC): Suitable for wet locations
- Pendant Mount up to 30L (except CC or PCC): Suitable for wet locations under covered ceiling Surface, Cord Mount, all Wall Wash, and all 35L-40L and all CC and PCC: Suitable for damp locations
- All with EM options: Suitable for Damp location
- EM: Certified under UL924 standard for emergency lighting and power equipment
- EM: Emergency battery packs are California Energy Commission (CEC) Title 20 Compliant
- For -BAA Option: This product meets federal procurement law requirements under the Buy American Act (FAR 52.225-9). See Buy America(n) Solutions
- For -TAA Option: Product configurations meet federal procurement law requirements under the Trade Agreements Act (FAR 52.225-11).
- 5 year warranty
