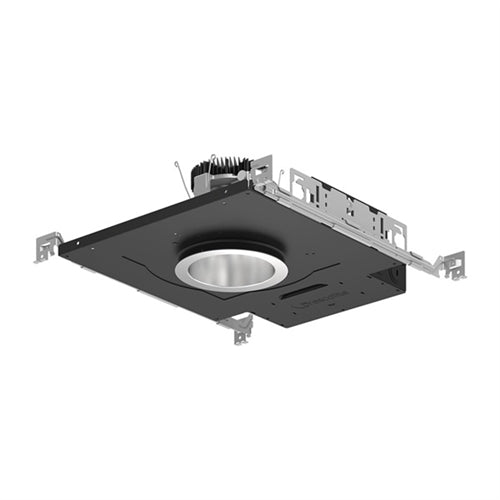

Prescolite LTR-4RD-H-SL-15L-DM1 4" Round Downlight New Construction, Standard Lumen, 1500 Lumens, 0-10V Dimming to 1%, 120-277V

Prescolite LTR-4RD-H-SL-15L-DM1 4" Round Downlight New Construction, Standard Lumen, 1500 Lumens, 0-10V Dimming to 1%, 120-277V

Price: $143.22
Price: $143.22

MODEL: Prescolite-LTR-4RD-388
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
  • Standard Non-IC. Chicago Plenum and IC options
  • Painted black durable steel platform with preinstalled bar hangers
  • Pre-wired junction box with snap-on covers for easy access
  • Snap-in connection from driver compartment allows easy installation
  • Light Engine connections use plenum rated (CMP) cable
OPTICS
  • Visually pleasing 50° cutoff to source and source image
  • The light distribution is free of distracting bright spots or pixelation and the perimeter has a smooth transition
  • Optical grade silicone lens integral to light engine
  • High purity spun aluminum reflector, self-flanged
  • Flush Mount flange option with mud-in ring available
  • Large selection of anodized finishes and colors
  • Painted cones and flange options available
ELECTRICAL
  • Chip-on-board LED with 2 SDCM
  • Multiple CCTs, 80+ or 90+ CRI
  • Long LED life: L90 at >55,000 hours (TM-21)
  • Universal voltage 120V–277V driver, 347V optional
  • UL Class 2, inherent short circuit and overload protection
  • Flicker free 0-10V dimming with 1% or <1% performance
  • DALI, DMX, and Lutron EcoSystem options
  • NX Lighting Controls provides options for standalone and networked functionality with wired or wireless connectivity for NX system deployments
  • Lutron Athena control options also available
  • Integral and remote emergency controller and battery pack options available
  • Refer to additional spec sheets for information on SpectraSync Tunable White or Dim-to-Warm solutions
INSTALLATION

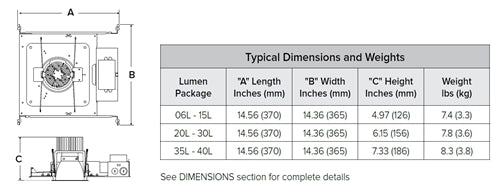

  • Accommodates ceiling thickness up to 2" (See DIMENSIONS section for details)
  • Universal adjustable mounting brackets also accept 1/2" EMT conduit or 1 1/2" or 3/4" lathing channel (by others) or Prescolite accessory bar hangers (B24 or B6)
  • Light Engine/Driver fully serviceable from above or below the ceiling
CERTIFICATIONS
  • cCSAus certified to UL 1598
  • Suitable for wet locations, covered ceiling. EM/ EMR: Suitable for damp locations
  • EM/EMR: Certified under UL 924 standard for emergency lighting and power equipment
  • EM/EMR: Emergency battery packs are California Energy Commission (CEC) Title 20 Compliant
  • When used with CE Bezel Trim Accessories: IP66/ IP69K rating; also meets IK10 per IEC 60068-2-75 impact testing
  • Approved for 8 (4 in/4 out) No. 12AWG conductors rated for 90°C through wiring
  • For -BAA Option: This product meets federal procurement law requirements under the Buy American Act (FAR 52.225-9)
  • See Buy America(n) Solutions
  • For -TAA Option: Product configurations meet federal procurement law requirements under the Trade Agreements Act (FAR 52.225-11)
  • See Buy America(n) Solutions
WARRANTY
  • 5 year warranty
