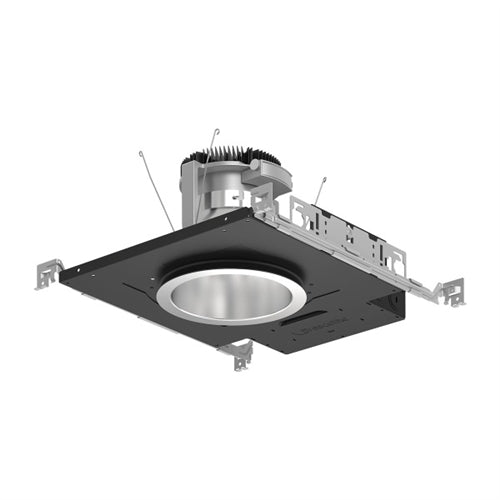

Prescolite LTR-6RD-H-SL-15L-DM1 6" Round Downlight New Construction Housing, Standard Lumen, 1500 Lumens, 0-10V Dimming to 1%

Price: $133.57

MODEL: Prescolite-LTR-115

Usually Ships in 3-5 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION

OPTICS

Visually pleasing 50° cutoff to source and source image
The light distribution is free of distracting bright spots or pixelation and the perimeter has a smooth transition
Optical grade silicone lens integral to light engine
High purity spun aluminum reflector, self-flanged
Flush Mount flange option with mud-in ring available
Large selection of anodized finishes and colors
Painted cones and flange options available

ELECTRICAL

Chip-on-board LED with 2 SDCM
Multiple CCTs, 80+ or 90+ CRI
Long LED life: L90 at >55,000 hours (TM-21)
Universal voltage 120V–277V driver, 347V optional
UL Class 2, inherent short circuit and overload protection
Flicker free 0-10V dimming with 1% or <1% performance
DALI, DMX, and Lutron EcoSystem options
NX or Lutron control options available
Integral and remote controller and battery pack options available
Refer to additional spec sheets for information on SpectraSync Tunable White or Dim-to-Warm or solutions

INSTALLATION

Accommodates ceiling thickness up to 2" (SL, ML, HL); up to 1.25" (VL, XL) (See DIMENSIONS section for details)
Universal adjustable mounting brackets also accept 0.5" EMT conduit or 1.5" or 0.75" lathing channel (by others) or Prescolite accessory bar hangers (B24 or B6).
Light Engine/Driver fully serviceable from above or below the ceiling

CERTIFICATIONS

cCSAus certified to UL 1598
For ?70L: Marked spacing required 36" fixture center to center; 36" fixture center to building member; 0.5" above fixture
Suitable for wet locations, covered ceiling. EM/ EMR: Suitable for damp locations.
EM/EMR: Certified under UL 924 standard for emergency lighting and power equipment
When used with CE Bezel Trim Accessories: IP66/IP69K rating; also meets IK10 per IEC 60068-2-75 impact testing
Approved for 8 (4 in/4 out) No. 12AWG conductors rated for 90°C through wiring
ENERGY STAR certified models available (For list and additional information, visit www.energystar.gov)
This product qualifies as a "designated country construction material" per F AR 52.225-11 Buy American-Construction.
Materials under Trade Agreements effective 6/6/2020.

WARRANTY

5 year warranty
