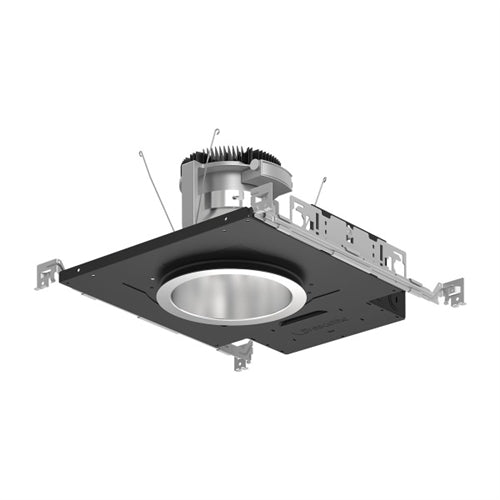

Prescolite LTR-6RD-H-SL06L-DM01 6" Round Downlight New Construction Housing, 600 Lumens, 0-10V Dimming to <1%
Prescolite LTR-6RD-H-SL06L-DM01 6" Round Downlight New Construction Housing, 600 Lumens, 0-10V Dimming to <1%
Regular price
Price:
$196.76
Regular price
Price:
Sale price
$196.76
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Standard Non-IC. Chicago Plenum and IC options
- Painted black durable steel platform with preinstalled bar hangers
- Pre-wired junction box with snap-on covers for easy access
- Snap-in connection from driver compartment allows easy installation
- Light Engine connections use plenum rated (CMP) cable
- Visually pleasing 50 degrees cutoff to source and source image
- The light distribution is free of distracting bright spots or pixelation and the perimeter has a smooth transition
- Optical grade silicone lens integral to light engine
- High purity spun aluminum reflector, self-flanged
- Flush Mount flange option with mud-in ring available
- Large selection of anodized finishes and colors
- Painted cones and flange options available
- Chip-on-board LED with 2 SDCM
- Multiple CCTs, 80+ or 90+ CRI
- Long LED life: L90 at >55,000 hours (TM-21)
- Universal voltage 120V–277V driver, 347V optional
- UL Class 2, inherent short circuit and overload protection
- Flicker free 0-10V dimming with 1% or <1% performance
- DALI, DMX, and Lutron EcoSystem options
- NX Lighting Controls provides options for standalone and networked functionality with wired or wireless connectivity for NX system deployments
- Lutron Athena control options also available
- Integral and remote controller and battery pack options available
- Refer to additional spec sheets for information on SpectraSync Tunable White or Dim-to-Warm or solutions
- Accommodates ceiling thickness up to 2" (SL, ML, HL); up to 1.25" (VL, XL) (See DIMENSIONS section for details)
- Universal adjustable mounting brackets also accept 1/2" EMT conduit or 1½" or ¾" lathing channel (by others) or Prescolite accessory bar hangers (B24 or B6)
- Light Engine/Driver fully serviceable from above or below the ceiling
- cCSAus certified to UL 1598
- For ≥70L: Marked spacing required 36" fixture center to center; 36" fixture center to building member; 0.5" above fixture
- Suitable for wet locations, covered ceiling. EM/ EMR: Suitable for damp locations
- EM/EMR: Certified under UL 924 standard for emergency lighting and power equipment
- EM/EMR: Emergency battery packs are California Energy Commission (CEC) Title 20 Compliant
- When used with CE Bezel Trim Accessories: IP66/ IP69K rating; also meets IK10 per IEC 60068-2-75 impact testing
- Approved for 8 (4 in/4 out) No. 12AWG conductors rated for 90 degrees C through wiring
- For -BAA Option: This product meets federal procurement law requirements under the Buy American Act (FAR 52.225-9) See Buy America(n) Solutions
- For -TAA Option: Product configurations meet federal procurement law requirements under the Trade Agreements Act (FAR 52.225-11) See Buy America(n) Solutions
- 5 year warranty
