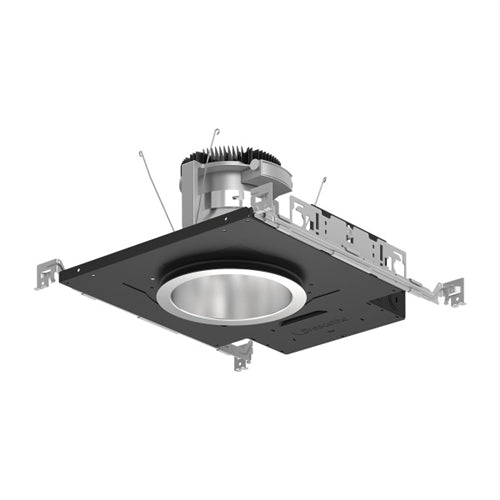

Prescolite LTR-6RD-T-SHSL35K8-WT 6" Round Downlight Light Engine/Trim Assembly, Standard Lumen, 3500K, 90 CRI, White Trim
Prescolite LTR-6RD-T-SHSL35K8-WT 6" Round Downlight Light Engine/Trim Assembly, Standard Lumen, 3500K, 90 CRI, White Trim
Regular price
Price:
$189.46
Regular price
Price:
Sale price
$189.46
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Standard Non-IC. Chicago Plenum and IC options
- Painted black durable steel platform with pre-installed bar hangers
- Pre-wired junction box with snap-on covers for easy access
- Snap-in connection from driver compartment allows easy installation
- Light Engine connections use plenum rated (CMP) cable
OPTICS
- Durable, non-conductive trim with 1/2" regressed lens
- Lens options include acrylic, polycarbonate, or tempered glass micro-prism, and clear acrylic
- Smooth room side lens surface for easy wipe down
- Available in white, black, or anti-microbial white trim color
ELECTRICAL
- Chip-on-board LED with 2 SDCM
- Multiple CCTs, 80+ or 90+ CRI
- Long LED life: L90 at >55,000 hours (TM-21)
- Universal voltage 120V–277V driver, 347V optional
- UL Class 2, inherent short circuit and overload protection
- Flicker free 0-10V dimming with 1% or <1% performance
- DALI, DMX, and Lutron EcoSystem options
- NX Lighting Controls provides options for standalone and networked functionality with wired or wireless connectivity for NX system deployments
- Emergency battery pack option available with remote test switch and indicator light
INSTALLATION
- Accommodates ceiling thickness up to 2" (SL, ML, HL); up to 1.25" (VL, XL)
- Universal adjustable mounting brackets also accept 1/2" EMT conduit or 1½" or ¾" lathing channel (by others) or Prescolite accessory bar hangers (B24 or B6)
- Light Engine/Driver fully serviceable from above or below the ceiling
CERTIFICATIONS
- cCSAus certified to UL 1598
- IP65 rated (room side) when properly installed per installation instructions
- NSF2 Splash/Non-Food Zone certified
- Suitable for wet locations, covered ceiling. EMR: Suitable for damp locations.
- EMR: Certified under UL 924 standard for emergency lighting and power equipment
- EMR: Emergency battery packs are California Energy Commission (CEC) Title 20 Compliant
- Approved for 8 (4 in/4 out) No. 12AWG conductors rated for 90°C through wiring
- For -BAA Option: This product meets federal procurement law requirements under the Buy American Act (FAR 52.225-9) See Buy America(n) Solutions
- For -TAA Option: Product configurations meet federal procurement law requirements under the Trade Agreements Act (FAR 52.225-11) See Buy America(n) Solutions
WARRANTY
- 5 year warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
