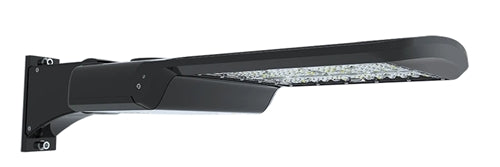

RAB A17-4T100 100W LED Area Light, 5000K (Cool), 13928 Lumens, 70 CRI, 120-277V, Type IV Distribution, Dimmable Bronze Finish

Suitable for wet locations

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Ingress protection rating of IP65 for dust and water

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 1.50A, 208V: 0.70A, 240V: 0.70A, 277V: 0.60A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

3.5% at 120V, 10.8% at 277V

99.9 % at 120V, 94.1 % at 277V

10kV

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

Polycarbonate lens

Die-cast aluminum housing, lens frame and mounting arm

3G vibration rating per ANSI C136.31

1 Fixture: 0.46

Universal mounting arm compatible for hole spacing patterns from 1" to 5 1/2" center to center. Round Pole Adaptor plate included as a standard. Easy slide and lock to mount fixture with ease. Round pole diameter must be >4" to mount fixtures at 90° orientation.

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Long-life, high-efficiency, surface-mount LEDs

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

5 Years Limited Warranty

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
