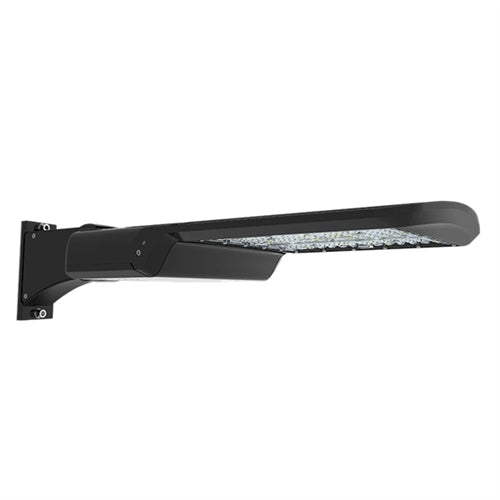

RAB A17-4T70 LED Area Light 70/60/50W, Type IV Distribution, Adjustable Mount, 3000K, 4000K and 5000K Color, 120-277V, 0-10V Dimming, Bronze

Suitable for wet locations

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Ingress protection rating of IP65 for dust and water

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

70W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.58A, 208V: 0.33A, 240V: 0.30A, 277V: 0.27A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

3.61% at 120V, 14.52% at 277V

99.91% at 120V, 91.9% at 277V

6kV

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

Polycarbonate lens

Die-cast aluminum housing, lens frame and mounting arm

3G vibration rating per ANSI C136.31

1 Fixture: 0.60 ft²

1 Fixture: 0.64 ft²

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Long-life, high-efficiency, surface-mount LEDs

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Universal mounting arm compatible for hole spacing patterns from 1" to 5 1/2" center to center. Round Pole Adaptor plate included as a standard. Easy slide and lock to mount fixture with ease. Round pole diameter must be >4" to mount fixtures at 90° orientation.

B3 U0 G3

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
