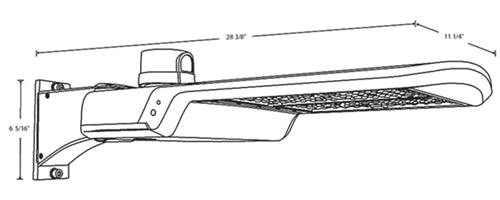

RAB A17XFU150 Field-Adjustable LED Area Lights, 150W/120W/100W, 3000K, 4000K and 5000K Color, 120-277V, Bronze

Field Adjustable Light Output:

Suitable for wet locations

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Ingress protection rating of IP65 for dust and water

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.

150W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 1.21A, 208V: 0.70A, 240V: 0.63A, 277V: 0.53A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

3.01% at 120V, 5.56% at 277V

99.9% at 120V, 96.2% at 277V

10 kV

ANSI C136.41 7-pin receptacle, compatible with wireless control systems

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.

B5 U0 G4

Long-life, high-efficiency, surface-mount LEDs

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

The minimum starting temperature is -40°F (-40°C)

Max Power Temp Rating: 104°F (40°C )

Polycarbonate lens

Die-cast aluminum housing, lens frame and mounting arm

3G vibration rating per ANSI C136.31

1 Fixture: 0.46

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Universal mounting arm compatible for hole spacing patterns from 1" to 5 1/2" center to center. Round Pole adapter plate included as a standard. Easy slide and lock to mount fixture with ease. Round pole diameter must be >4" to mount fixtures at 90° orientation.
