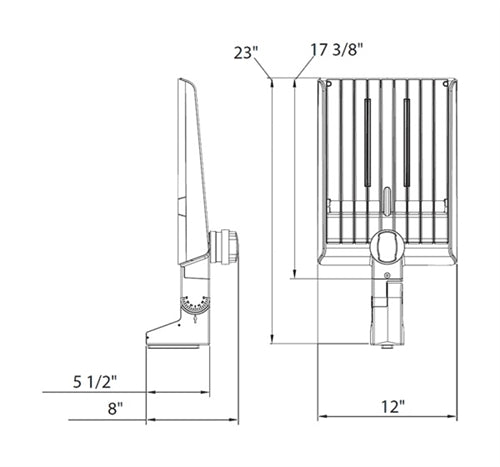

RAB A22-2T150 LED Area Light 150/120/100W, Type II Distribution, Adjustable Mount, 3000K, 4000K and 5000K Color, 120-277V, 0-10V Dimming, Bronze

Field Adjustable Light Output:

Compliance

Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

Ingress protection rating of IP66 for dust and water

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

150W: Replaces up to 400W Metal Halide (MH) or 400W High Pressure Sodium (HPS)

Constant Current, Class 1, 120-277V, 50/60 Hz:

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

4.02% at 120V, 6.33% at 277V

99.8% at 120V, 96.3% at 277V

ANSI C136.41 7-pin receptacle, compatible with wireless control systems

6 kV

The Type II distribution is ideal for wide walkways, on ramps and entrance roadways, bike paths and other long and narrow lighting applications. This type is meant for lighting larger areas and usually is located near the roadside. This type of lighting is commonly found on smaller side streets or jogging paths.

The minimum starting temperature is -40°F (-40°C)

Suitable for use in up to 104°F (40°C)

Polycarbonate lens

Die-cast aluminum

1 Fixture: 0.4

Formulated for high durability and long-lasting color

High-temperature silicone gaskets

Mercury and UV free. RoHS-compliant components.

Long-life, high-efficacy, surface-mount LEDs

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Type 2
