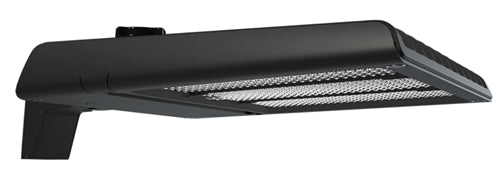

RAB A22-320 320W/280W/250W Field Adjustable LED Area Light, 34478-44898 Lumens, 80-84 CRI
RAB A22-320 320W/280W/250W Field Adjustable LED Area Light, 34478-44898 Lumens, 80-84 CRI
Regular price
Price:
$499.84
Regular price
Price:
Sale price
$499.84
Unit price
per
Ordering a large quantity?Request a quote
description
|
Field Adjustable
|
|
|
Field Adjustable Light
Output:
|
320W/280W/250W (factory default: 320W) |
| Color Temperature Selectable: | 3000K, 4000K and 5000K (factory default:4000K) |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations. Suitable for mounting within 4ft (1.2m) of the ground.
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating
of IP66 for dust and water
|
|
Trade Agreements Act
Compliant
|
This product is a product
of Cambodia and a "designated country" end product that complies
with the Trade Agreements Act
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities. Designed
to meet DLC 5.1 requirements.
|
|
DLC Listed
|
DLC Product Code: S-KPNS31 |
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
320W: Replaces up to
1,000W Metal Halide (MH) or 750W High Pressure Sodium (HPS)
|
|
Wattage Equivalency
|
280W: Replaces up to 1,000W Metal Halide (MH) or 600W High Pressure Sodium (HPS) |
|
Wattage Equivalency
|
250W: Replaces up to 750W Metal Halide (MH) or 600W High Pressure Sodium (HPS) |
|
Electrical
|
|
|
Driver
|
Constant Current, Class
1, 120-277V, 50/60 Hz:
|
|
Driver
|
320W: 120V: 2.66A, 208V: 1.53A, 240V: 1.33A, 277V: 1.15A |
|
Driver
|
280W: 120V: 2.33A, 208V: 1.34A, 240V: 1.16A, 277V: 1.01A |
|
Driver
|
250W: 120V: 2.08A, 208V: 1.2A, 240V: 1.04A, 277V: 0.9A |
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
4.01% at 120V, 6.71% at
277V
|
|
Power Factor
|
99.9% at 120V, 97.7% at
277V
|
|
7-Pin Receptacle with
Shorting Cap
|
ANSI C136.41 7-pin
receptacle, compatible with wireless control systems
|
|
Surge Protection
|
6kV
|
|
Construction
|
|
|
IES Classification
|
The Type III distribution
is ideal for roadway, general parking and other area lighting applications
where a larger pool of lighting is required. It is intended to be located
near the side of the area, allowing the light to project outward and fill the
area.
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°C (-40°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
40°C (104°F)
|
|
Lens
|
Polycarbonate lens
|
|
Housing
|
Die-cast aluminum
|
|

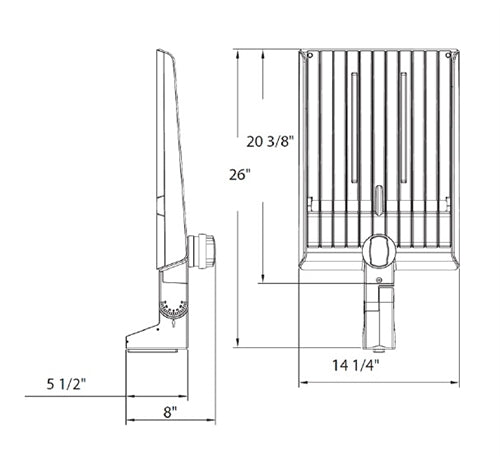

Mounting
|
Adjustable universal pole
mount (standard). Slipfitter and wall mount accessory available.
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Gaskets
|
High-temperature silicone
gaskets
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Optical
|
|
|
Other
|
|
|
5 Yr Limited Warranty
|
5 years limited warranty
|
