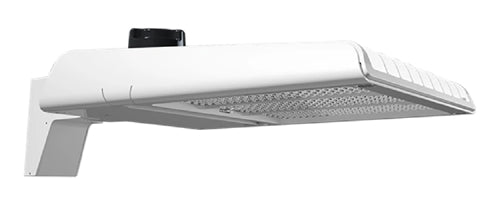

RAB A22-4T150W LED Area Light 150/120/100W, Type IV Distribution, Adjustable Mount, 3000K, 4000K and 5000K Color, 120-277V, 0-10V Dimming, White
RAB A22-4T150W LED Area Light 150/120/100W, Type IV Distribution, Adjustable Mount, 3000K, 4000K and 5000K Color, 120-277V, 0-10V Dimming, White
Regular price
Price:
$301.00
Regular price
Price:
Sale price
$301.00
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable
|
Field Adjustable Light
Output:
|
| 150W/120W/100W (factory default: 150W) | |
| Color Temperature Selectable: | |
| 3000K, 4000K and 5000K (factory default:4000K) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations. Suitable for mounting within 4 ft (1.2m) of the ground.
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating
of IP66 for dust and water
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities. Designed
to meet DLC 5.1 requirements.
|
| DLC Product Code: S-C5NRQL | |
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
150W: Replaces up to 400W
Metal Halide (MH) or 400W High Pressure Sodium (HPS)
|
| 120W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS) | |
| 100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS) | |
|
Electrical
|
|
|
Driver
|
Constant Current, Class
1, 120-277V, 50/60 Hz:
|
| 150W: 120V: 1.25A, 208V: 0.72A, 240V: 0.63A, 277V: 0.54A | |
| 120W: 120V: 1.0A, 208V: 0.58A, 240V: 0.5A, 277V: 0.43A | |
| 100W: 120V: 0.83A, 208V: 0.48A, 240V: 0.42A, 277V: 0.36A | |
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
5.23% at 120V, 6.66% at
277V
|
|
Power Factor
|
99.8% at 120V, 96.3% at
277V
|
|
7-Pin Receptacle with
Shorting Cap
|
ANSI C136.41 7-pin
receptacle, compatible with wireless control systems
|
|
Surge Protection
|
6kV
|
|
Construction
|
|
|
IES Classification
|
The Type IV distribution
(also known as a Forward Throw) is especially suited for mounting on the
sides of buildings and walls, and for illuminating the perimeter of parking
areas. It produces a semicircular distribution with essentially the same
candlepower at lateral angles from 90° to 270°.
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°C (-40°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
40°C (104°F)
|
|
Lens
|
Polycarbonate lens
|
|
Housing
|
Die-cast aluminum
|
|
Effective Projected Area
|
1 Fixture: 0.4
|
| 2 Fixtures: 0.8 | |
| 3 Fixtures: 1.4 | |
| 4 Fixtures: 1.4 | |
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Gaskets
|
High-temperature silicone
gaskets
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Installation
|
|
|
Mounting
|
Adjustable universal pole
mount (standard). Slipfitter and wall mount accessory available.
|
|
Optical
|
|
|
BUG Rating
|
Type 4
|
| 150W: B3 U0 G3 | |
| 120W: B3 U0 G3 | |
| 100W: B3 U0 G2 | |
|
Other
|
|
|
5-Year Limited Warranty
|
5-Year Limited Warranty
|
