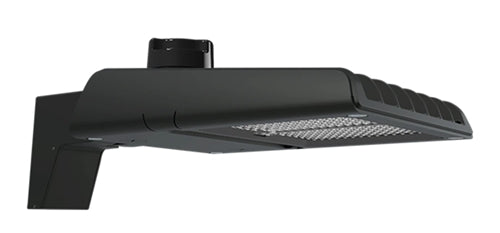

RAB A22-5T70 LED Area Light 70/60/50W, Type V Distribution, Adjustable Mount, 3000K, 4000K and 5000K Color, 120-277V, 0-10V Dimming, Bronze

Field Adjustable Light Output:

Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Ingress protection rating of IP66 for dust and water

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

70W: Replaces up to 350W Metal Halide (MH) or 200W High Pressure Sodium (HPS)

Constant Current, Class 1, 120-277V, 50/60 Hz:

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

4.23% at 120V, 7.78% at 277V

99.7% at 120V, 94.6% at 277V

ANSI C136.41 7-pin receptacle, compatible with wireless control systems

6 kV

The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings

The minimum starting temperature is -40°F (-40°C)

Suitable for use in up to 104°F (40°C)

Polycarbonate lens

Die-cast aluminum

1 Fixture: 0.3

Formulated for high durability and long-lasting color

High-temperature silicone gaskets

Mercury and UV free. RoHS-compliant components.

Long-life, high-efficacy, surface-mount LEDs

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Type 4
