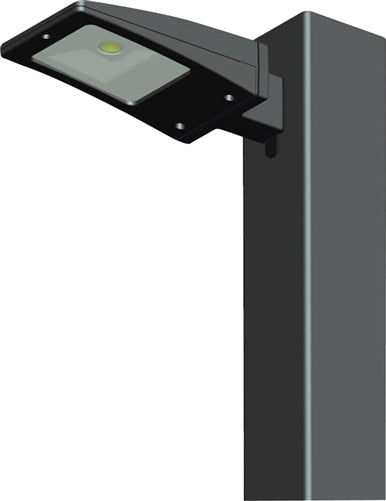

RAB ALED10Y LED 10W Area Light, No Photocell, 3000K (Warm), 509 Lumens, 64 CRI, Bronze Finish
RAB ALED10Y LED 10W Area Light, No Photocell, 3000K (Warm), 509 Lumens, 64 CRI, Bronze Finish
Regular price
Price:
$293.76
Regular price
Price:
Sale price
$293.76
Unit price
per
Ordering a large quantity?Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color. Often times, photo is used as a representation of a product family
description
Features & Benefits
- Mounts easily to 10' & 15' high, 4" square, pre-drilled steel poles
- Full Cutoff, Fully Shielded LED Wallpack
- High Output LED Light Engine
- Maintains 70% of its initial lumens at 50,000 hours
- Weatherproof high temperature silicone gaskets
- Superior Heat Sinking with Die Cast Aluminum Housing and External Fins
| Model # | ALED10Y |
| Lumen Maintenance | The LED will deliver 70% of its initial lumens at 50,000 hours of operation. |
| Housing | Integral cast aluminum mounting pad and external fins for optimum heat sinking to ensure cool operation with maximum LED life and light output |
| Gaskets | High temperature silicone |
| Finish | Chip and fade resistant polyester powder coat finish. |
| Green Technology | ALEDs are Mercury and UV free. |
| IESNA LM-79 | LED luminaires comply with the IESNA LM-79 testing procedure, which measures performance qualities of LED luminaires to allow for a true comparison of luminaires regardless of the light source. |
| Fixture Efficacy | 41 Lumens per Watt |
| Color Accuracy | 45 CRI |
| Light Color | 5250 K (Daylight) |
| LED Light Engine | Multi-chip 10W high output long life LED Driver: Constant Current, Class II, 120V-240V, 50/6/ Hz, 350mA |
| Heatsink | Cast aluminum thermal management system for optimal heat sinking. The ALED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature. |
| Maximum EPA | Fixed Arm = 0.10 |
| California Title 24 | ALED complies with California Title 24 building and electrical codes. |
| IESNA LM-79 & IESNA LM-80 Testing | RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and have received the Department of Energy "Lighting Facts" label. |
| Patents | The design of the ALED is protected by patents pending in Canada, U.S., China and Taiwan |
| UL Listing | Suitable for wet locations. Suitable for mounting within 4' of the ground. |
| Warranty | AB LED fixtures give you peace of mind because both the fixture and light engine components are backed by RAB's 5 Year Warranty. |
Download PDF specification Share your knowledge of this product. Be the first to write a review »
