Home > RAB Lighting > RAB ALED20Y LED 20W Area Light, No Photocell, 3000K (Warm), 985 Lumens, 70 CRI, Bronze Finish

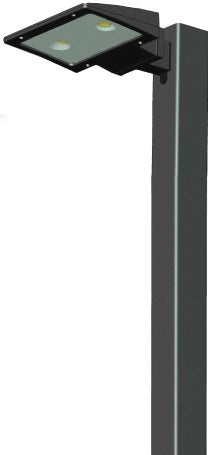

RAB ALED20Y LED 20W Area Light, No Photocell, 3000K (Warm), 985 Lumens, 70 CRI, Bronze Finish
RAB ALED20Y LED 20W Area Light, No Photocell, 3000K (Warm), 985 Lumens, 70 CRI, Bronze Finish
Regular price
Price:
$312.59
Regular price
Price:
Sale price
$312.59
Unit price
per
free shiping
details >>
Ordering a large quantity?
Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color. Often times, photo is used as a representation of a product family
description
Features & Benefits
- Mounts easily to 10' & 15' high, 4" square, pre-drilled steel poles
- Full Cutoff, Fully Shielded LED Wallpack
- High Output LED Light Engine
- Maintains 70% of its initial lumens at 50,000 hours
- Weatherproof high temperature silicone gaskets
- Superior Heat Sinking with Die Cast Aluminum Housing and External Fins
| Model # | ALED20Y |
| Lumen Maintenance | The LED will deliver 70% of its initial lumens at 50,000 hours of operation. |
| Housing | Precision die cast aluminum housing, lens frame and moutning plate. |
| Gaskets | High temperature silicone |
| Finish | Chip and fade resistant polyester powder coat finish. |
| Green Technology | RC LEDs are Mercury and UV free |
| IESNA LM-79 | LED luminaires comply with the IESNA LM-79 testing procedure, which measures performance qualities of LED luminaires to allow for a true comparison of luminaires regardless of the light source. |
| Total Harmonic Distortion | THD = 8.1% |
| Driver | Automatic Voltage Sensing Driver for 120 ? 277 volts |
| Fixture Efficacy | 32 Lumens per Watt |
| Color Accuracy | 74 CRI |
| Light Color | 2754 K (Warm White) |
| LED Light Engine | Two Multi-chip 10W high output long life LED Driver: Constant Current, Class 2 |
| EPA | 0.10 |
| Heatsink | Integral cast aluminum mounting pad and external fins for optimal heat sinking to ensure cool operation with maximum LED life and light output. |
| Two Mounting Options | Junction Box with 5 Conduit Entry Points and Threaded Plugs for surface mounting plus Cover Plate for mounting over 4" recessed junction box included |
| Dark Sky Approved | The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire. |
| For use on LEED Buildings | IDA Dark Sky Approval means that this fixture can be used to achieve LEED Credits for Light Pollution Reduction. |
| IESNA LM-79 & IESNA LM-80 Testing | RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and have received the Department of Energy "Lighting Facts" label. |
| Patents | The ALED20Y design is protected under patents pending in Canada, U.S., China, Taiwan and Mexico. |
| UL Listing | Suitable for wet locations. Suitable for mounting within 4' of the ground. |
| Warranty | AB LED fixtures give you peace of mind because both the fixture and light engine components are backed by RAB's 5 Year Warranty. |
Download PDF specification Share your knowledge of this product. Be the first to write a review »
